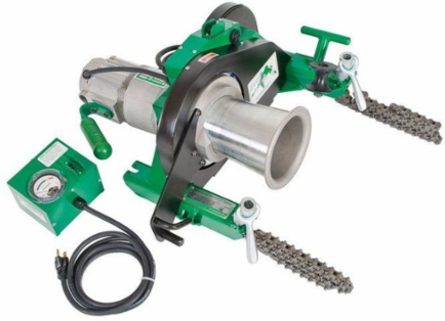

Greenlee 6001 Super Tugger Cable Puller - 6,500 LB Capacity, 1-1/2 HP, Floor Mount
- MPN: 6001
- UPC: 783310296270
- PPN: GRN-6001
- UNSPSC: 39121722
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Super Tugger Cable Puller - 6,500 LB Capacity, 1-1/2 HP, Floor Mount
Features
- Pull up to 6,500 lbs. (28.9kN) with less than 27 lbs. (120N of operator effort with these powerful cable pullers
- Unique floor mounting attachment for quick, reliable setup
- Leaf-type mounting chains won't twist when tightening
- Heat-treated steel serrated gripper feet for secure mounting to conduit
- Force Gauge included to constantly monitor the pull
- Right-angle sheave allows the operator to stand out of the direct line of force
- Audio alarm high force warning and circuit breaker shut off at maximum force for added safety
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Load
- 6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
- Voltage Rating
- 125 Volts
- Prime Mover Specification
- Double-Braided Composite Rope 3/4 IN
- Standard
- Super Tugger Cable Puller Power Unit, Includes force gaugeand vise chains
- Accessory
- 35098 UPC 35098 Double-Braided Composite Rope 3/4 IN x 300 FT (19.100 MM x 91.000 M), 35100 UPC 35100 Double-Braided Composite Rope 3/4 IN x 600 FT (19.100 MM x 182.000 M), 35101 UPC 35101 Double-Braided Composite Rope 3/4 IN x 1,200 FT (19.100 MM x 365.0 M)
- Drive Motor
- 1-1/2 hp, 120 VAC, 16 Hz, 20 Amp
- Pulling Rope
- 3/4 IN (19.100 MM) Double-Braided Composite, Rated At 26000 LB (115.600 KN)
Sub BrandSuper Tugger
Cable TypeElectrical cable
MountingFloor mount / Chain mount
IncludesForce Gauge And Vise Chains
TypePuller Assembly
CapacityNo load - 5 m/min (16.5 ft/min)8900 newtons (2000 lb) - 3.4 m/min (11 ft/min)17.8 kN (4000 lb) - 2.3 m/min (7.5 ft/min)
Pulling Force6500.000 LB (28.900 KN) Maximum, 4500.000 LB (20.000 KN) Continuous
Pulling Speeds16.5 FTPM At No Load, (8.800 KN) - 11 (3.4) At 2000 LB, (17.900 KN) - 7.5 (2.3) At 4000 LB, (26.700 KN) - 6 (1.8) At 6000 LB
Motor Information
- Voltage
- 120 VLT
- Horsepower
- 1 1/2 HP
Amperage20
