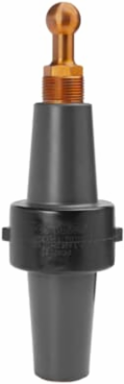

Thomas & Betts K671BGAD 600A GROUNDING DEVICE 15-25KV
- MPN: K671BGAD
- UPC: 075114144513
- PPN: T-B-K671BGAD
- UNSPSC: 39121613
CAD
$1184.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp Series Grounding Device with 1 inch diameter Ball - Hot Line Clamp Grounding Bus. Conforms to IEEE Standard 386. Mates with K676BGADDR insulated Receptacle. Use 1 inch Hex for Assembly.
Features
- 1 inch (25.4mm) Diameter Ball
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Standard | ANSI/IEEE Standard 386 |
| Voltage Rating | 15/25 kV |
| Insulation | EPDM Rubber |
| Connection | Push-In |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4909 |
| Application | 15/25 kV, 600 Amps |
| Amperage Rating | 600 A |
| Conductor Material | Copper , EPDM Rubber |
| Length | 10.65 in |
