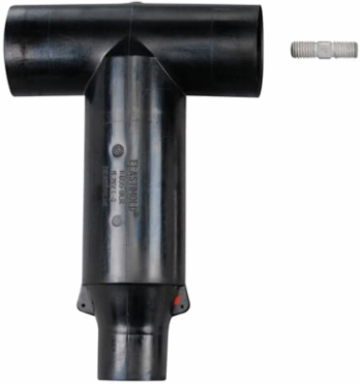

Thomas & Betts K655BRLR 600A REPLACEMENT ELBOW HOUSING ONLY
- MPN: K655BRLR
- UPC: 783786796700
- PPN: T-B-K655BRLR
- UNSPSC: 26121630
CAD
$2634.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Series Replacement Elbow Housing only without Test Point.
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Additional Information
- Application
- The K655BRLR can be used in applications where the cable is not long enough to reach the bushing. The connector is ideal for conversion from live front padmounted switchgear to dead front padmounted switch providing approximately 20 inch of gained length. Replacement elbows provide the ability to make the connection through use of an I-adapter with a 600 Series elbow and straight receptacle.
- Effective Date
- 20130121
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 3.13 inch (79.4 mm) Diameter of Cable Entrance, 8.34 inch (211.9 mm) Width of T Body, 29.81 (757.2 mm) Centerline to Bushing Interface.
- Standards
- ANSI/IEEE Standard 386
Brand / LabelElastimold
MaterialEPDM Rubber
Product TypeElbow Housing
Special FunctionsFully rated 15/25kV, 600 Amp Deadbreak Product. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Extends cable connection point approximately 20 inches. Ideal for livefront to deadfront Switchgear conversions.
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)1779 >> Cable accessories
