Killark

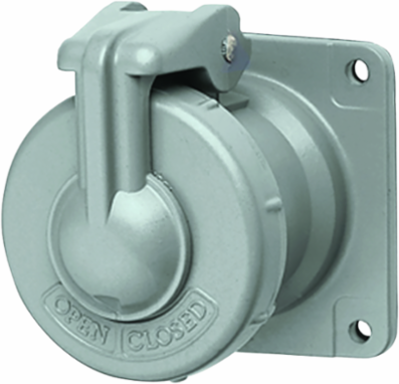

Killark VR621-S39 60A 2 Pole 2 Wire Receptacle - 4.5 x 4.25 x 4.66 Inch, Indoor/Outdoor Use

60A 2 Pole 2 Wire Receptacle - 4.5 x 4.25 x 4.66 Inch, Indoor/Outdoor Use
  • MPN: VR621-S39
  • UPC: 783936376141
  • PPN: HBL-VR621-S39

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1017.69/ EA

Description

60A 2 Pole 2 Wire Receptacle Assembly - Reverse Service

Features

  • Patented “Breech-Lock” cap serves as both flip lid and screw cover.
  • Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
  • Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
  • Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
  • “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
  • Boxes come with a green grounding screw.
  • VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.

Specifications

Specifications

Country of Origin
United States
Height
4.66 in
Voltage Rating
600 VAC;250 VDC
Amperage Rating
60 A
Finish Type
Baked Powder Epoxy/Polyester Finish
Number Of Wires
2
Type
Pin & Sleeve
Class Code
D35
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
D35D260
Series
VersaMate Series
Carton - SCC-14 Next Lower Level Sub Pack
00783936376141
Dimensions4.5 in x 4.25 in x 4.66 in
Length4.5 in
Width4.25 in
ApplicationSuitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities
Frequency Rating50-400 Hz
StyleStyle I
ARRA CompliantContact Manufacturer
Description - Invoice60A 2W2P RECEPT ASSY-RVRS SER
Harmonization Code8536694020
MSDS FlagNo
MaterialBody-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel
Base Unit of MeasureEA
