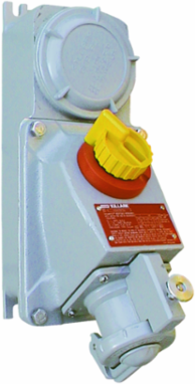

Killark VSQ6023FS-COV 60A Factory Sealed Hazardous Receptacle 2 Wire 3 Pole, Aluminum Construction
- MPN: VSQ6023FS-COV
- UPC: 783936012476
- PPN: HBL-VSQ6023FS-COV
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
60A 2W3P VSQ Factory Sealed Hazardous Interlocked Receptacle - Cover Only
Features
- Factory Sealed Construction
- Compact size and footprint
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Factory Wired Receptacle (Load Side)
- “Off” position is padlockable for maintenance safety
- Auxiliary Contact (late-make early-break) rated 10 Amp, 1/3 HP at 125/250 VAC.
- Adjustable mounting lugs
- Feed-through construction
- Horsepower-rated internal switch
- Killark VersaMate® VSQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks).
Specifications
Key Specifications
- Country of Origin
- United States
- Amperage Rating
- 60 A
- Number Of Poles
- 2
- Type
- Pin & Sleeve
- Class Code
- D35
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D35D260
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- VSQ-FS Series
- BOX SIZE
- (in)
- NAICS Code
- 335931A133
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
Nema Rating3, 4, 4X, 7(B, C, D), 9(F, G)
Number Of Wires3
ARRA CompliantContact Manufacturer
Description - InvoiceVSQ6023FS COVER ONLY
Harmonization Code8537109170
MSDS FlagNo
Factory SealedFactory Sealed
Receptacle TypeMechanically Interlocked
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936012476
