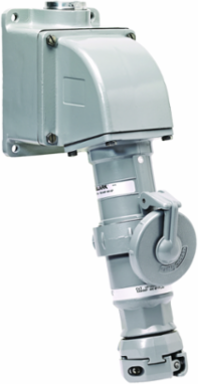

Killark VR631D4-S39 60A 3 Pole 3 Wire Receptacle, 1-1/4 Inch Hub, Indoor/Outdoor Use
- MPN: VR631D4-S39
- UPC: 783936065021
- PPN: HBL-VR631D4-S39
CAD
$2130.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
60A 3 Pole 3 Wire Receptacle with D Type Box 1-1/4" - Reverse Service
Features
- Patented “Breech-Lock” cap serves as both flip lid and screw cover.
- Patented notch in cap arm holds cap open for easy plug insertion or maintenance.
- Type 4X rating when inserted into VersaMate receptacle and locking ring is tightened.
- Patented pin design uses slotted spring clip which avoids excessive wear while providing continuous electrical pin to sleeve contact.
- “Increased Safety” type box terminals with gripper ribs securely clamp around conductors.
- Boxes come with a green grounding screw.
- VersaMate® metallic pin & sleeve plugs, receptacles, and in-line connectors are designed for heavy duty industrial use. These devices supply power to both fixed and portable electrical equipment including pumps, generators, welders, vacuums, blowers and similar apparatus. Suitable for indoor and outodoor use, as well as applications that include wet, cold, hosedown, hazardous and corrosive environments. Configurations are also available in reverse-service and polarized orientations.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 7.5 in x 5.15 in x 5.75 in |
| Hub Size | 1-1/4" |
| Voltage Rating | 600 VAC;250 VDC |
| Amperage Rating | 60 A |
| Finish Type | Baked Powder Epoxy/Polyester Finish |
| Number Of Wires | 3 |
| Type | Pin & Sleeve |
| Class Code | D35 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | D35D260 |
| Material | Body-Copper-free aluminum; Contacts-Brass; Spring tensioner-Patented beryllium copper; External screws-316 stainless steel |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936065021 |
| Back Box Type | ANGLED FEED THRU |
|---|---|
| Height | 5.75 in |
| Length | 7.5 in |
| Width | 5.15 in |
| Application | Suitable for indoor or outdoor use. Applications include the wet, cold, hosedown, hazardous or corrosive areas in such industrial applications as:Pulp & Paper Mills, Electrical Power Plants, Petrochemical Plants, Wastewater Treatment, Marine, Docks, Ports, Construction Sites, Breweries, Refineries, Chemical Plants, Grain Facilities , Textile Manufacturing, Food Processing Facilities |
| Frequency Rating | 50-400 Hz |
| Style | Style I |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | VERSAMATE RECPT.REVRSE SERVICE |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Buy America(n) Qualified | Contact Manufacturer |
| Series | VersaMate Series |
| BOX SIZE | (in) |
| NAICS Code | 335931A133 |
