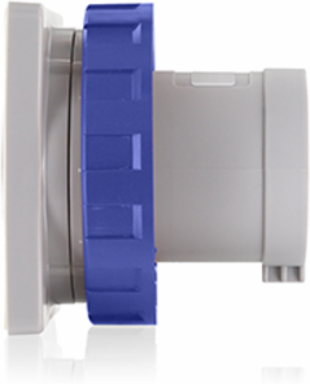

Leviton W263-B6 63 Amp International Configuration Panel Mounting Inlet, IP66/IP67, Blue
- MPN: W263-B6
- UPC: 078477678190
- PPN: LEV-W263-B6
CAD
$179.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

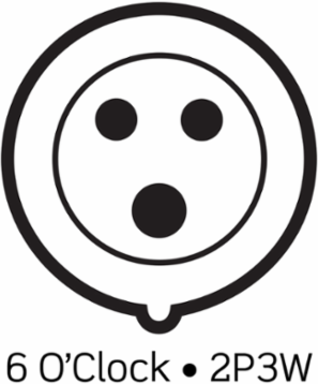

63 Amp, 200-250 Volt, 2P+E (2P, 3W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Panel Mounting Inlet, Industrial Grade, IP66/67, Watertight - BLUE
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CE | Marked |
|---|---|
| NOM Certified | Yes |
| IEC Rating | 60309-1 and 60309-2 |
|---|---|
| RETIE Certified | Yes |
Material Specifications
| Contacts | Nickel Plated Brass |
|---|
| Housing | Halogen-free engineering polymer |
|---|
Mechanical Specifications
| Terminal Accom. | #10 - #4 AWG |
|---|
Product Features
| Color | Blue |
|---|---|
| Device Type | Inlet |
| Configuration | International |
|---|
Environmental Specifications
| IK Rating | IK08 |
|---|---|
| Operating Temperature | -25°C to 40°C |
| IP Rating | IP66/IP67 |
|---|
Electrical Specifications
| Amperage | 63 A |
|---|---|
| Pole | 2 |
| Wire | 3 |
| Frequency | 50/60Hz |
|---|---|
| Voltage | 200/250 VAC |
