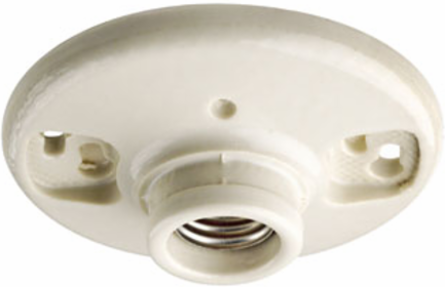

Leviton 49875-2 Glazed Porcelain Keyless Incandescent Lampholder, 660W, Medium Base, 3-1/4 or 4 Inch
- MPN: 49875-2
- UPC: 078477182871
- PPN: LEV-49875-2
CAD
$8.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
660W/250V Medium Base One-Piece Glazed Porcelain Outlet Box Mount Incandescent Lampholder, Keyless, Single Circuit, 2 Screws with Case Lip, Top Wired - White
Features
- Leviton produces lamp holders for virtually every light source equipped with incandescent, fluorescent, or LED lamps. Lamp-holders include incandescent medium base, and specialty sizes & fluorescent lamp holders, in addition to a large line of porcelain lamp holders including pulse-rated mogul-base products, and an extensive selection of devices for high-intensity lamps.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- CSA Certified
- File LR-1863
UL ListedFile E3810
Material Specifications
- Availability
- Distribution
- Circuit
- Single Circuit
- Fits Outlet Box Size
- 3-1/4 or 4 Inch
- Mounting Type
- Twist-Lock
- Sequence
- ON-OFF
- Socket Shell Material
- Aluminum
Body MaterialGlazed Porcelain
ColorWhite
Lamp Socket BaseMedium
Operator TypeKeyless
Shell MaterialAluminum
Termination6 Inch Pigtail Leads
Mechanical Specifications
- Circuit
- Single Circuit
- Lamp Socket Base
- Medium
- Mounting Type
- Twist-Lock
- Termination
- 6 Inch Pigtail Leads
- Wiring Access
- Top Wired
Fits Outlet Box Size3-1/4 or 4 Inch
Max. Lamp Wattage660W
Operator TypeKeyless
Torque Range14 – 18 in.-lbs
Product Features
- Lamp Base
- Medium
- Light Type
- Incandescent
Lampholder TypeOutlet Box Mount
Electrical Specifications
- Availability
- Distribution
- Construction
- One-Piece
- Lamp Socket Base
- Medium
- Mounting Type
- Twist-Lock
- Sequence
- ON-OFF
- Termination
- 6 Inch Pigtail Leads
- Wiring Access
- Top Wired
CircuitSingle Circuit
Fits Outlet Box Size3-1/4 or 4 Inch
Max. Lamp Wattage660W
Operator TypeKeyless
Standards and CertificationsUL/CSA, NOM
Warranty1-Year Limited
