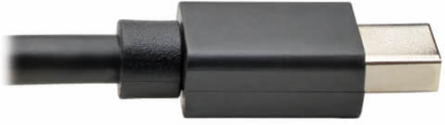

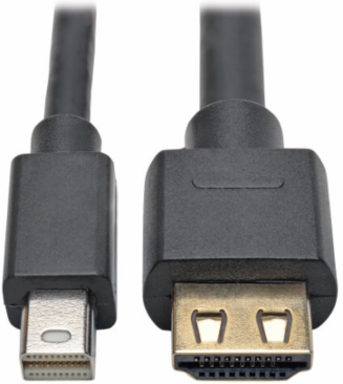

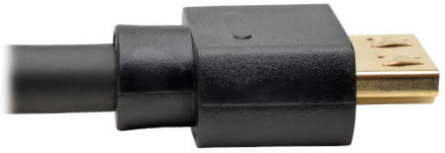

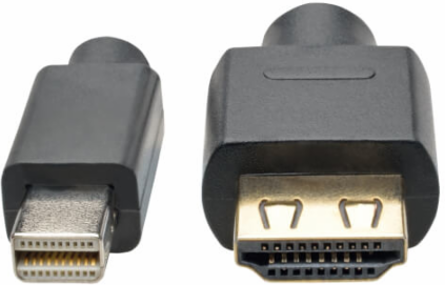

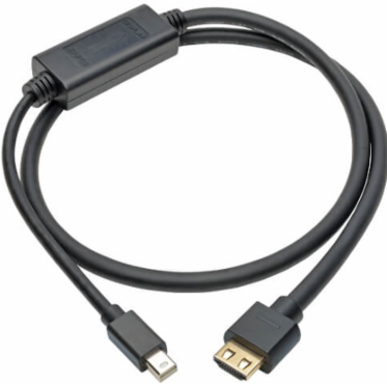

Tripp Lite P586006HDV4A Mini DisplayPort 1.4 to HDMI Active Adapter Cable, M/M, 4K 60 Hz, HDR, HDCP 2.2, 6 ft, TAA
- MPN: P586006HDV4A
- UPC: 037332268709
- PPN: TRP-P586-006-HD-V4A
CAD
$81.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Mini DisplayPort 1.4 to HDMI Active Adapter Cable (M/M), 4K 60 Hz, 4:4:4, HDR, HDCP 2.2, 6 ft. (1.8 m), TAA
Documentation & Downloads
Specifications
Performance
| Max Supported Video Resolution | 3840 x 2160 (4K) @ 60Hz |
|---|---|
| HDR Support | Yes |
| Chroma Sub Sampling | 4:4:4 |
| Displayport Specification | 1.4 |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Operating Humidity Range | 0% to 85% RH, Non-Condensing |
| Max Supported Color Depth | 24-bit True Color |
|---|---|
| 3D Video Supported | No |
| Audio Specification | Audio up to 8-channel LPCM, compressed audio (AC-3, DTS), HBR audio formats, and 192kHz audio frame rate up to 24-bit audio sample size |
| HDCP Specification | 1.4; 2.2 |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Storage Humidity Range | 0% to 85% RH, Non-Condensing |
Material
| Connector Plating | Nickel |
|---|---|
| Material of Construction | PVC, ABS |
| Cable Jacket Rating | VW-1 |
| Color | Black |
|---|---|
| Cable Jacket Material | PVC |
Dimensions
| Product Type | Active Cable |
|---|---|
| Side A - Connector 1 | MINI DISPLAYPORT (MALE) |
| Cable Length | 6 ft |
| Minimum Bend Radius | 73mm |
| Technology | HDMI; DisplayPort |
|---|---|
| Side B - Connector 1 | HDMI (MALE) |
| Cable Outer Diameter | DP: 5.0mm; HDMI: 7.3mm |
Compliance
| Product Warranty Period | 3-year limited warranty |
|---|
