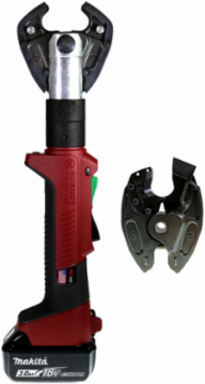

Burndy PATMD66LWWCJ 6-Ton IN-LINE® D3 Scissor Action Crimper and Cutter, 3Ah Li-Ion, 355° Head Rotation
Burndy PATMD66LWWCJ 6-Ton IN-LINE® D3 Scissor Action Crimper and Cutter, 3Ah Li-Ion, 355° Head Rotation
- MPN: PATMD66LWWCJ
- UPC: 621945480964
- PPN: BUR-50076348
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
PATMD-LW IN-LINE® 6T Scissor Action, D3 Crimp Jaw, ACSR Cut Jaw, 3Ah Li-ion, AC, Utility Bag.
Features
- Interchangeable scissor action crimping and cutting jaws available
- 355° Head rotation
- Uses W and X dies
- Safety trigger lock and locking jaw tabs
- LED Worklight
- Accepts 2.0Ah-6.0Ah 18V lithium-ion Makita batteries
Specifications
Specifications
- Application - For Use On
- Interchangeable Jaws: Crimp: ACSR, Aluminum, Copper Code/Flex; Cut: ACSR (26/7), Aluminum (AAC), Copper (Soft Drawn), EHS Guy Wire (sold separately)
- Country of Origin
- US
- Description - Slang
- PATMDLW, IN-LINE, scissor action, 6-ton
- Dimensions
- 17.85 in x 4.375 in x 2.75 in
- Length
- 17.85 in
- Power Source
- 120V-AC Charger
- Trade Name
- PATRIOT® IN-LINE®
- Weight
- 5.55 lb.
- Application
- Crimping and Cutting
- Type
- Crimper and Cutter
- Class Code
- B82
- Harmonization Code
- 8467290090
- Sub Class Code
- B82B82B
- Crimping Ranges
- With Appropriate Jaw: Crimping Capacity: Copper: #10 sol.-500 kcmil, Copper Flex: #8 AWG-350 kcmil, Aluminum: #14 sol.-350 kcmil, ACSR: #14 sol.-4/0 AWG; Cutting Capacity: ACSR (26/7) up to 556.5 kcmil, Aluminum (AAC) up to 636 kcmil, Copper (Soft Drawn) up to 600 kcmil, EHS Guy Wire up to 3/8"
- Tool Type
- Battery Actuated Scissor Action
- BOX SIZE
- 7.665x24.313x10.333 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945480964
- Pallet - GTIN - Package
- 70621945480963
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Container TypeVinyl Utility Bag
Crimp Force Capacity6 ton
Die TypeW Die and X Die
Height2.75 in
Operating Voltage18 VDC
Product Type6-Ton IN-LINE®
Warranty5 year limited warranty (excluding blades), Lifetime warranty on INFINITY DRIVE®, 3 year warranty on batteries and charger
Width4.375 in
Battery Type3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Recharge Time0.5 hr
SeriesPATRIOT® IN-LINE® Series
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Height44.075 in
Pallet Weight531.000 lb.
