Mersen A70QS100-22F 700V High-Speed Semiconductor Fuse 14x51mm, 22x58mm, 200kA AC I.R.
Mersen A70QS100-22F 700V High-Speed Semiconductor Fuse 14x51mm, 22x58mm, 200kA AC I.R.
- MPN: A70QS100-22F
- UPC: 782001142131
- PPN: FER-A70QS100-22F
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$189.58/ EA
Description

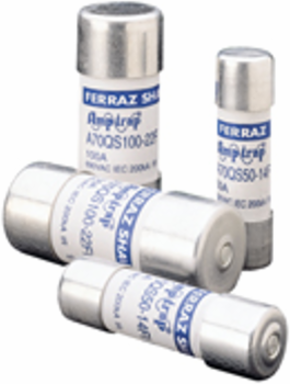

These Premium Amp-trap French Cylindrical Semiconductor Fuses are an extension of the popular A70QS product line. They are solid-fill 14mm and 22mm fuses IEC rated 690VAC, 200kA Interrupting and 700VDC, 100kA interrupting at 10ms time constant. In addition, these fuses have an 890 VDC rating for capacitor discharge applications up to 2.5ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior I²t for improved protection and performance.
Features
- Ferrule mount for design versatility
- 700VDC rated for dc protection of equipment with L/R <= 10ms/c
- 690V IEC rated, tested at 760VAC; can be used up to 750VAC in U.S.
- Very low I2t for improved semiconductor protection
- International 14 x 51mm (2 In x 9/16 In) and 22 x 58mm (2-1/4 In x 13/16 In) sizes for worldwide acceptance
- Superior cycling ability for longer life on difficult cyclic loading applications
Specifications
Product Details
- Speed / Characteristic
- High-Speed
- Body Material
- Ceramic
- Lead Free
- Consult Technical Services
- Connection Terminal Type
- Ferrule
- ROHS Compliant
- Consult Technical Services
- I.R DC
- 100 kA
- CSA Certification
- 1422-30 1422-30
- Standards
- UL Recognized Component CSA Certified IEC 269-4 Compliance
- Ampere Range
- 10 to 800 A
I.R. AC200 kA
DC Voltage700 VDC
ApplicationsSmall inverters, UPS systems, Solid State Relays, motor drives and similar 700V or less equipment
Body StyleCylindrical Non Rejection
CE conformityConsult Technical Services
AC Voltage690 VAC
UL CertificationE76491 JFHR2.E76491
MountingClip
