Mersen A70QS32-22F High-Speed Semiconductor Fuse 14x51mm & 22x58mm, 700VDC, 200kA I.R.
- MPN: A70QS32-22F
- UPC: 782001142087
- PPN: FER-A70QS32-22F
CAD
$101.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

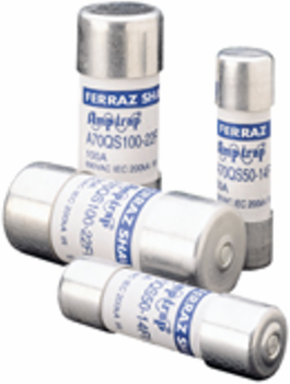

These Premium Amp-trap French Cylindrical Semiconductor Fuses are an extension of the popular A70QS product line. They are solid-fill 14mm and 22mm fuses IEC rated 690VAC, 200kA Interrupting and 700VDC, 100kA interrupting at 10ms time constant. In addition, these fuses have an 890 VDC rating for capacitor discharge applications up to 2.5ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior I²t for improved protection and performance.
Features
- 690V IEC rated, tested at 760VAC; can be used up to 750VAC in U.S.
- Very low I2t for improved semiconductor protection
- Ferrule mount for design versatility
- 700VDC rated for dc protection of equipment with L/R <= 10ms/c
- Superior cycling ability for longer life on difficult cyclic loading applications
- International 14 x 51mm (2 In x 9/16 In) and 22 x 58mm (2-1/4 In x 13/16 In) sizes for worldwide acceptance
Specifications
Product Details
- Mounting
- Clip
- Ampere Range
- 10 to 800 A
- DC Voltage
- 700 VDC
- I.R DC
- 100 kA
- UL Certification
- E76491 JFHR2.E76491
- AC Voltage
- 690 VAC
- Standards
- UL Recognized Component CSA Certified IEC 269-4 Compliance
- Connection Terminal Type
- Ferrule
- Body Style
- Cylindrical Non Rejection
ROHS CompliantConsult Technical Services
CE conformityConsult Technical Services
I.R. AC200 kA
CSA Certification1422-30 1422-30
Body MaterialCeramic
Speed / CharacteristicHigh-Speed
Lead FreeConsult Technical Services
ApplicationsSmall inverters, UPS systems, Solid State Relays, motor drives and similar 700V or less equipment
