Mersen A70QS80-22F High-Speed Cylindrical Semiconductor Fuse 700VDC, 890VDC, 14x51mm, 22x58mm
Mersen A70QS80-22F High-Speed Cylindrical Semiconductor Fuse 700VDC, 890VDC, 14x51mm, 22x58mm
- MPN: A70QS80-22F
- UPC: 782001142124
- PPN: FER-A70QS80-22F
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$147.14/ EA
Description

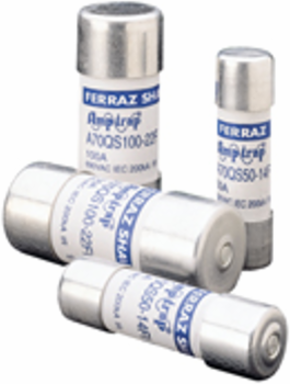

These Premium Amp-trap French Cylindrical Semiconductor Fuses are an extension of the popular A70QS product line. They are solid-fill 14mm and 22mm fuses IEC rated 690VAC, 200kA Interrupting and 700VDC, 100kA interrupting at 10ms time constant. In addition, these fuses have an 890 VDC rating for capacitor discharge applications up to 2.5ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior I²t for improved protection and performance.
Features
- Ferrule mount for design versatility
- Superior cycling ability for longer life on difficult cyclic loading applications
- International 14 x 51mm (2 In x 9/16 In) and 22 x 58mm (2-1/4 In x 13/16 In) sizes for worldwide acceptance
- Very low I2t for improved semiconductor protection
- 690V IEC rated, tested at 760VAC; can be used up to 750VAC in U.S.
- 700VDC rated for dc protection of equipment with L/R <= 10ms/c
Specifications
Product Details
- I.R DC
- 100 kA
- Body Style
- Cylindrical Non Rejection
- AC Voltage
- 690 VAC
- CE conformity
- Consult Technical Services
- Connection Terminal Type
- Ferrule
- ROHS Compliant
- Consult Technical Services
- Applications
- Small inverters, UPS systems, Solid State Relays, motor drives and similar 700V or less equipment
- UL Certification
- E76491 JFHR2.E76491
- Body Material
- Ceramic
StandardsUL Recognized Component CSA Certified IEC 269-4 Compliance
CSA Certification1422-30 1422-30
Speed / CharacteristicHigh-Speed
Lead FreeConsult Technical Services
Ampere Range10 to 800 A
DC Voltage700 VDC
I.R. AC200 kA
MountingClip
