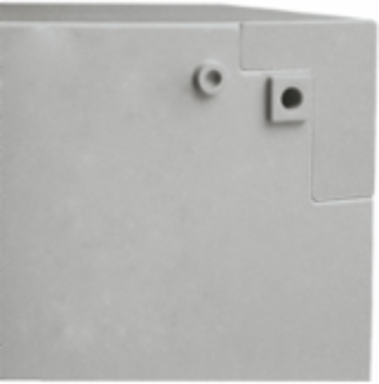

Schneider Electric NSYCEPLMBG Blanking Corner Plate Thermoplastic for PanelSeT PLM, 330 mm x 430 mm
- MPN: NSYCEPLMBG
- PPN: SCH-NSYCEPLMBG
CAD
$5.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

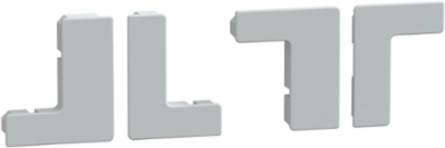

Thalassa blanking corner plate thermoplastic for PLM43/54. 4 blanking plates. Multi-purpose, sealing accessory. Mounting on rear of enclosure. Clipped fixing mode. Thermoplastic Material. Grey RAL 7035. set of 1.
Documentation & Downloads
Specifications
Key Specifications
| Height | 16.93 in |
|---|---|
| Length | 7.87 in |
| Width | 12.99 in |
|---|---|
| Country of Origin | Brazil, Spain, Sweden, United States |
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | 4 blanking plate |
| Fixing Mode | clipped |
| Mounting Location | rear of enclosure |
| Product Or Component Type | blanking plate |
| Range | PanelSeT |
| Sustainable Packaging | No |
| Height Nominal | 430 mm |
| Length Total | 200 mm |
| Width Nominal | 330 mm |
| Accessory / Separate Part Category | Aesthetic Accessory |
| Package Weight(Lbs) | 72.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-02-24 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2041 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Energy Efficiency Optimized | False |
| Material | thermoplastic |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | Yes |
| Pep Code | ENVPEP1101018EN |
| Height Useful | 430 mm |
| Length Useful | 200 mm |
| Width Real | 330 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909989 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1101018EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1101018EN |
General Attributes
| Product Or Component Type | blanking plate |
|---|
ETIM
| ETIM 8 | EC002617 |
|---|
| ETIM 9 | EC002617 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
