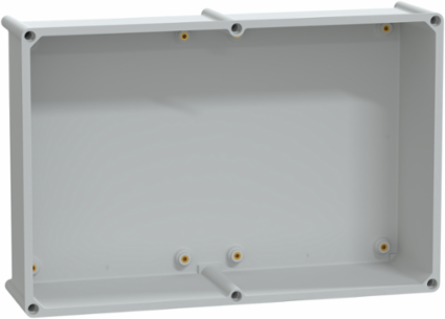

Schneider Electric NSYFPLS3654G PanelSeT PLS Box Rear Part, 36 cm Height, 54 cm Width, IP66 Rated
Schneider Electric NSYFPLS3654G PanelSeT PLS Box Rear Part, 36 cm Height, 54 cm Width, IP66 Rated
- MPN: NSYFPLS3654G
- PPN: SCH-NSYFPLS3654G
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$112.43/ EA
Description
Designed for versatility and durability, the polyester rear part of the PLS box from Schneider Electric is an essential component for various applications. With a robust construction reinforced with fiberglass, this enclosure boasts an IP66 rating, ensuring excellent protection against dust and water ingress, making it ideal for outdoor use. Measuring 36 cm in height, 54 cm in width, and 13.5 cm in depth, this wall-mounted unit is engineered to withstand harsh environmental conditions, withstanding temperatures ranging from -30 to 70 °C and featuring fire resistance up to 960 °C. Certified to UL standards and compliant with NEMA classifications, it provides reliable electrical insulation and is suitable for multi-purpose applications, making it a dependable choice for any installation requiring a secure and resilient enclosure.
Specifications
Physical Attributes
- Color
- body Gray RAL 7035)
- Enclosure Nominal Width
- 540 mm
Enclosure Nominal Height360 mm
Conformance Attributes
- Standards
- NEMA classification 13, IEC 62208, NEMA 4X
Product CertificationsUL
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Body Type
- one piece moulded
- Device Composition
- 1 rear part on enclosure
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Material
- polyester reinforced with fibreglass
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Medium Desc
- Polyester rear part of PLS box 36x54x13.5cm
- Product Kit Identifier
- N
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Publishable Date2025-12-11
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Device Applicationmulti-purpose
Device Short NamePLS
Enclosure Mountingwall mounted
Fire Resistance960 °C IEC 62208
Package Weight Lbs2.506 kg
Product Or Component Typeinsulating modular rear
ReturnabilityNo
Type Of Front Coverwithout
Stocking FlagY
Pep CodeENVPEP1107004EN
Product NamePanelSeT PLS
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -30-70 °C
- IP Degree Of Protection
- IP66 IEC 60529
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1107004EN
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1107004EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- insulating modular rear
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
