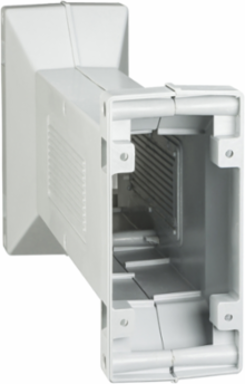

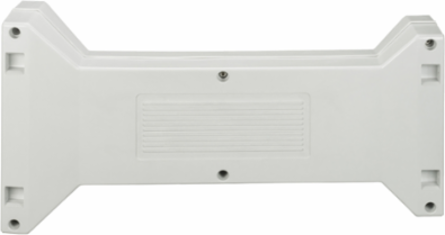

Schneider Electric NSYSFSPLMG Floor Mounting Pillar 800mm Polyester for Thalassa PLM54/64
- MPN: NSYSFSPLMG
- PPN: SCH-NSYSFSPLMG
- UNSPSC: 39121324
CAD
$1364.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

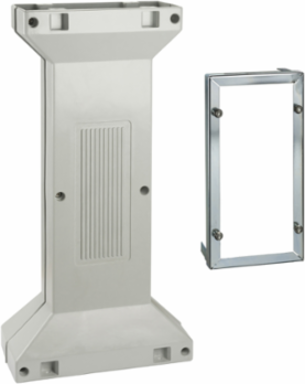

Floor mounting pillar for Thalassa PLM54 and 64. H is 800 mm. Multi-purpose application. Mounting on the floor. Fixing mode by fixing element. Polyester charged with fibreglass for support pillar and steel for floor frame. Grey RAL 7035.
Features

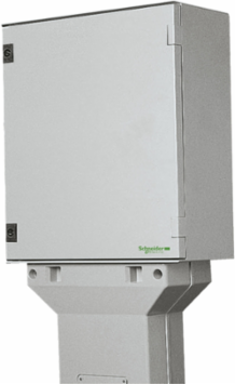

- Support pillar to help protect cable entries in outdoor installations
- Accessory directly mounted to the floor
- Made of polyester reinforced with fiberglass
- Delivered with steel frame for secure fixing to the floor
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|---|
| Width | 13.98 in |
| Height | 31.5 in |
|---|---|
| Weight | 6600 g |
Physical Attributes
| Color | support pillar Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | fixing elements1 support pillar, 1 floor frame |
| Carbon Footprint Of The Distribution Phase A4 | 13.103129711848476, 13 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.5756771618121548, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-13 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2041 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Fixing Mode | by fixing element |
| Mounting Location | on the floor |
| Product Or Component Type | support pillar |
| Returnability | No |
| Sustainable Packaging | No |
| Database Version | 2023-02 |
| Height Nominal | 800 mm |
| Width Nominal | at the base: 405 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 3926909989 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 13 kg CO2 eq., 13.426964357040609 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 26 kg CO2 eq., 26.220285954623947 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | support pillar polyester charged with fibreglassfloor frame steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range | PanelSeT |
| Software Version | v6.1 |
| Total Lifecycle Carbon Footprint | 54 kg CO2 eq. |
| Data Source | extrapolated product |
| Height Useful | 800 mm |
| Width Real | on the top: 355 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone Free | Yes |
| Functional Unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 5 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP1101018EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-12-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Carbon Footprint | 54.32605718532518 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1101018EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | support pillar |
|---|
ETIM
| ETIM 8 | EC000721 |
|---|---|
| ETIM 10 | EC000721 |
| ETIM 9 | EC000721 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
