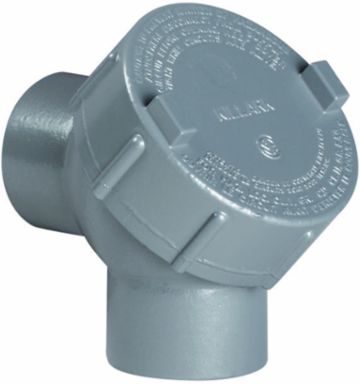

Killark Y-3M-EX 90 Capped Elbow 1 Inch Iron with Threaded Cover and Smooth Bushings
- MPN: Y-3M-EX
- UPC: 783936072579
- PPN: HBL-Y-3M-EX
- UNSPSC: 39131707
CAD
$354.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
90° 1" Iron, Capped Elbow (Quad Listed)
Features
- Threaded for rigid conduit or IMC
- Smooth integral bushings to prevent damage to wires
- Certified QUAD listed
- Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|---|
| Hazardous Rating(s) | II2G;Ex d IIC |
| Hub Size | 1" |
| Color | Gray |
| Inside Diameter | 0.72 in |
| Special Features | Threaded for rigid conduit or IMC. Smooth integral bushings to prevent damage to wires. |
| Width | 3 in |
| Diameter - Inside | 0.72 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CAP ELBOW FF 90 1"QUADLISTED |
| Harmonization Code | 7307929000 |
| Lead Time | 10 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| CSA File Number | LR11716 |
| UL File Number | E10514 |
| Series | Y Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936072579 |
| Master Pack Description | Each |
| Dimensions | 4 in x 3 in x 4 in |
|---|---|
| Height | 4 in |
| Application | To change direction 90° in rigid or IMC conduit systems where space is limited and access is needed for pulling conductors or maintenance. |
| Flexibility | Rigid or IMC Conduit |
| Length | 4 in |
| Type | Capped Elbow |
| Cover Type | Threaded |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 1.77 |
| Material | Iron |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.850 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359323110 |
