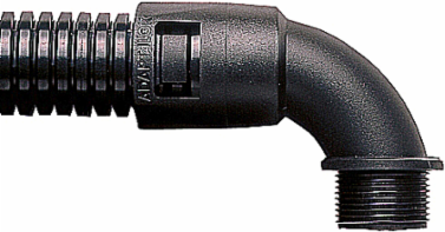

Adaptaflex AL21/M20/C90/BL 90 Degree Conduit Fitting, 21mm Nominal Size, M20 Thread, IP66, Black
- MPN: AL21/M20/C90/BL
- UPC: 786210279770
- PPN: T-B-AL21/M20/C90/BL
CAD
$12.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
90 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 21mm, M20 Thread, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 90 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
SizeNC 21mm
ColorBlack
Cable EntryM20 Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- M20 x 1.5
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter21mm
Model90°-elbow
Construction typeExternal thread
Thread typeMetric
Thread length13mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
Packaging
- Inner Quantity
- 10
- Outer Quantity
- 150
- Weight Uom
- 0.13 lbs. Each
Inner Dimensions (inches)1x1.2x2.4
Outer Dimensions (inches)14x14x6
