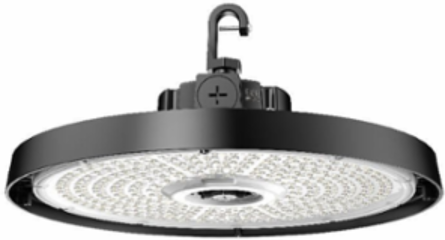

Current Lighting Solutions 93307172 Round LED Highbay, 15,000/18,000/21,000 Selectable Lumens, 4000/5000K Selectable CCT 80 CRI,120-347V, 0-10V dimming
- MPN: 93307172
- UPC: 662055256070
- PPN: GLI-PRC11X088LQVSTAQB
- UNSPSC: 39111546
CAD
$164.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Round LED Highbay, 15,000/18,000/21,000 Selectable Lumens, 4000/5000K Selectable CCT 80 CRI,120-347V, 0-10V dimming
Features
- Voltaje universal 120–347V
- Lúmenes seleccionables 15,000/18,000/21,000 o 24,000/30,000/34,000 lm
- CCT seleccionable 3500K/4000K/5000K, 80 CRI
- Carcasa de aluminio inyectado con lente de policarbonato transparente
- Clasificación IP65 para ubicaciones húmedas
- Sensor instalable en campo y accesorios opcionales
- Opciones de montaje con gancho y soporte de pared
- PRC is able to withstand moisture, dust and airborne contaminants with its IP65 rating. Maintain IP65 protection even with the use of field-installable sensors.
- All PRC fixtures come ready for a field-installable sensor. No need to double your SKU count or plan ahead for sensors - with the PRCs sensor-ready design you can quickly and easily pop in a sensor to capture additional energy savings on any job.
Documentation & Downloads
Specifications
Key Specifications
- CCT (K)
- 3500 K; 4000 K; 5000 K; Field Selectable
- CRI
- 80
- Efficacy (LPW)
- Up to 160 LPW
- Category
- High Bay
- Lensing Description
- Polycarbonate Lens
- Lumen Maintenance Rating
- L70 @ 50,000 hours
- Lumens
- 15,000 / 18,000 / 21,000 lm
- Optical Distribution
- Selectable 100º / 80º / 60º
- SAP Material Number
- 93307172
- Voltage (V)
- 120-347 V
- Wattage
- 100-150 W
- IP Rating
- IP65
Connect Family NamePRC Selectable Round High Bay
DimmableYes
Family Optics/Distribution OfferingSelectable 100° / 80° / 60°
Indoor/OutdoorIndoor
Location RatingWet
Lumen Range15,000-38,000 lm
Operating Temperature-40 to 50 °C
Safety CertificationcULus
Size TypeRedonda
Warranty5 year limited warranty
FCCYes
NSF RatedYes
