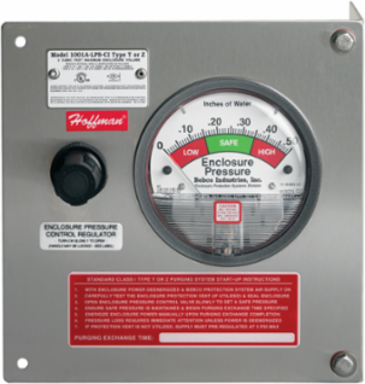

nVent Hoffman A1001YZUMC1 Small-volume system, class 1

Small-volume system, class 1
  • MPN: A1001YZUMC1
  • UPC: 783510127961
  • PPN: HOF-A1001YZUMC1
  • UNSPSC: 39121331

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$2465.08/ EA

Description

Small-volume type Y or Z purging/pressurization system are enclosure pressurization or purging systems that operate on a supply of compressed instrument air or inert gas. It regulates and monitors pressure within sealed (protected) enclosures to prevent combustible dust accumulation, or remove and prevent flammable gas or vapor accumulations. Available in two models for enclosures with a maximum enclosure volume of up to 2 or 10 cubic feet (0.06 or 0.28 cubic meters). Includes tamper-proof regulator with gauge (TR-10G) to comply with NFPA standard requiring protection against overpressurization. Other purposes include heat, moisture and dust contamination prevention.

Features

  • Universal mount
  • Available in two models for enclosures with a maximum enclosure volume of up to 2 or 10 cubic feet
  • Mounting plate: Type 316L stainless steel
  • Regulator body: zinc with enamel finish
  • Enclosure pressure gauge: aluminum with enamel finish
  • Polycarbonate regulator handle
  • Fastener hardware available in aluminum and stainless steel
  • Includes tamper-proof regulator with gauge (TR-10G) to comply with NFPA standard requiring protection against over pressurization
  • Note: pressure Vent not required when inlet pressure limited to 5PSI using standard TR-10G. For inlet pressure over 5PSI order EPV-1-SA-00 or EPV-1-SA-90 separately. Contact HOFFMAN for pricing.

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
229
Material
Stainless Steel 316L
Thickness (T)
1.98
Model
1001, Class 1
Works With
NEMA & IEC
Cubic Capacity
2 cubic ft
Height (H)229
Depth (D)127
FinishBrushed
Volume0.06
Weight7.98
Size2CF in
