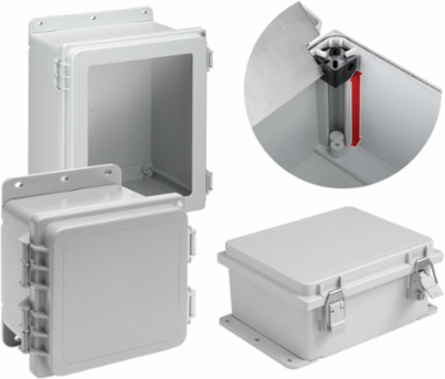

nVent Hoffman A1084PHCW PolyPro Window Type 4X, 10.12x8.12x4.38, Polyester
nVent Hoffman A1084PHCW PolyPro Window Type 4X, 10.12x8.12x4.38, Polyester
- MPN: A1084PHCW
- UPC: 783510170868
- PPN: HOF-A1084PHCW
- UNSPSC: 39121309
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$270.31/ EA
Description
PolyPro Polyester Enclosures are lightweight designed to withstand harsh, corrosive environments. This PolyPro Window Type 4X, A1084PHCW item measures 10.12x8.12x4.38 inches with a material of Polyester.
Features
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Optional cover screws included with all models
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
Specifications
Specifications
- BABA
- Yes, BABA Compliant
- Width (W)
- 206
- Protection Rating
- NEMA Type 12
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Cover Style
- Window
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Sub Brand
- PolyPro
- Size
- 10.12x8.12x4.38 in
Height (H)257
Depth (D)111
Product FamilyPolyPro
ColorLight Gray
Thickness (T)3.3
IP RatingIP66
Weight3.6
MaterialPolyester
