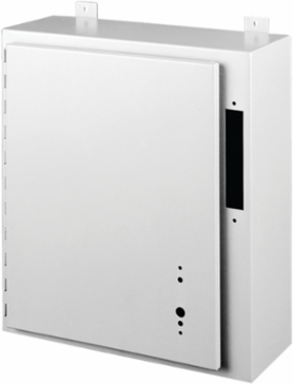

nVent Hoffman A24AB2210LP Disconnect Enclosure Type 12, 24x21x10 Inch, Gray Steel, NEMA 12
- MPN: A24AB2210LP
- UPC: 783510326104
- PPN: HOF-A24AB2210LP
- UNSPSC: 39121324
CAD
$1129.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Disconnect Enclosures provide extra level of visual ON/OFF indication, Allen-Bradley® 1494 Cutouts. This Allen-Bradley 1494 Cutout Disconnect Enclosure Type 12, A24AB2210LP item measures 24x21x10 inch with material of Steel colored Gray.
Features
- Holes provided in body and door for mounting disconnect switch, operating mechanism and door hardware
- Type 12 rated door gasket
- Seams continuously welded and ground smooth
- Includes locking bar(s) for door hardware, spacers and screws to support disconnect panel, and instructions for installing disconnects
- Collar studs provided for mounting optional panels
- Removable door with continuous hinge
- External mounting brackets
- Data pocket is high impact thermoplastic
- External-formed flange around all sides of enclosure opening
- Guide bracket(s) and door catch welded to door
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 559
- Finish
- Powder Coated
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- Data Pocket Size (D x E)
- 152 x 152
- Weight
- 49
- Size
- 24.00x21.38x10.00 in
Height (H)610
Depth (D)254
ColorGray
Interior ColorWhite
Thickness (T)1.9
IP RatingIP65
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
