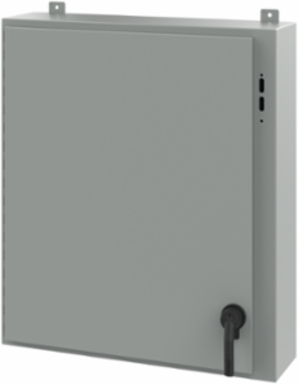

nVent Hoffman A36SA3208LPPL Disconnect Enclosure with Handle Type 12, 36.00x31.38x8.00, Gray, Steel

Disconnect Enclosure with Handle Type 12, 36.00x31.38x8.00, Gray, Steel
  • MPN: A36SA3208LPPL
  • UPC: 783510404192
  • PPN: HOF-A36SA3208LPPL
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1676.77/ EA

Description

Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure with Handle Type 12, A36SA3208LPPL item measures 36.00x31.38x8.00 inches with a material of Steel colored Gray.

Features

  • 14 gauge steel
  • Seams continuously welded and ground smooth
  • Bonding provision on door
  • External welded-on mounting brackets
  • External formed body flange channels away liquids
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Oil-resistant gasket
  • Collar studs for mounting optional panels
  • Holes in body and door for mounting disconnect operating handle, operating mechanism, and door hardware
  • Supplied standard with POWERGLIDE handle and latching hardware; note that model A60SA3812A24LP is sold without handle
  • Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
797
Protection Rating
NEMA Type 12
Exterior Color
Gray
Exterior Color Code
ANSI 61
Handle Included
Yes
IP Rating
IP65
Material
Steel
NEMA Rating
12 Indoor, dust-resistant
Height (H)914
Depth (D)203
FinishPowder Coated
Interior ColorWhite
Thickness (T)1.9
Data Pocket Size (D x E)305 x 305
Weight42
Size36.00x31.38x8.00 in
