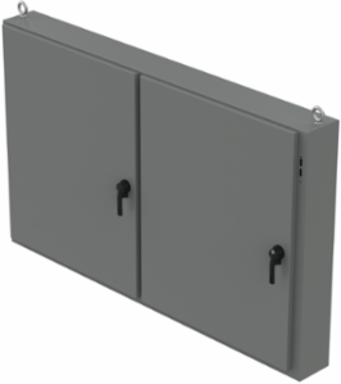

nVent Hoffman A48X2E7824 Low-Profile Disconnect Enclosure 48 Inch x 78.5 Inch x 24 Inch, NEMA Type 12, Gray Steel
- MPN: A48X2E7824
- UPC: 783510136611
- PPN: HOF-A48X2E7824
- UNSPSC: 39121324
CAD
$4449.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 2-Door Disconnect Type 12, A48X2E7824 item measures 48.00x78.50x24.00 inches with material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,994
- Protection Rating
- NEMA Type 12
- Color Code
- ANSI 61
- Body Stiffener
- 0
- Lifting Eye Quantity
- 2
- NEMA Rating
- 12 Indoor, dust-resistant
- Material
- Steel
- Color
- Gray
Height (H)1,219
Depth (D)610
FinishPowder Coated
Thickness (T)2.48972972972973
Panel Quantity1
IP RatingIP55
Weight558
Size48.00x78.50x24.00 in
