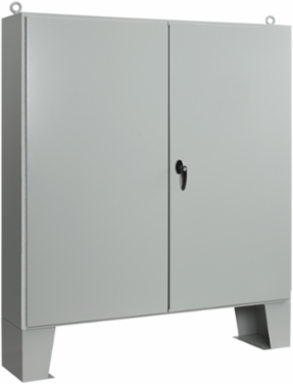

nVent Hoffman A604816LPG Two-Door Floorstand Gray Inside Type 12, 60.06x48.06x16.06, Gray, Steel
- MPN: A604816LPG
- UPC: 783510383497
- PPN: HOF-A604816LPG
- UNSPSC: 39121307
CAD
$3931.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NEMA Type 12 two door enclosure on floorstands with 3 point latch. This Two-Door Floorstand Gray Inside Type 12, A604816LPG item measures 60.06x48.06x16.06 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- 3-point latch mechanism operated by oil-tight key-lock handle
- Gasketed overlapping doors with no centerpost
- Concealed, easy-to-remove hinges
- Data pocket is high-impact thermoplastic
- 12-in. floor stands bolted-on to enclosure
- Heavy-duty lifting eyes
- Panel supports
- Oil-resistant gasket
- Collar studs for mounting optional panel
- Bonding provision on door
- Provision for mounting fluorescent light
Documentation & Downloads
Specifications
Additional
- NEMA Rating
- Type 12 Indoor, dust-resistant
- Height
- 1,526 mm (60.06 in)
- Depth
- 408 mm (16.06 in)
- Finish
- Powder Coated Gray
- Weight
- 413 lb
- Gasket
- Oil-resistant
- Door Feature
- Gasketed overlapping doors with no centerpost
- Data Pocket Material
- High-impact thermoplastic
- Lifting Eyes
- Heavy-duty
- Bonding Provision
- On door
Dimensions60.06 x 48.06 x 16.06 in
Width1,221 mm (48.06 in)
MaterialSteel
ColorGray (ANSI 61)
Door TypeTwo-Door
Latch Mechanism3-point latch with oil-tight key-lock handle
HingesConcealed, easy-to-remove
Panel SupportsIncluded
Mounting ProvisionCollar studs for optional panels
Lighting ProvisionMounting provision for fluorescent light
