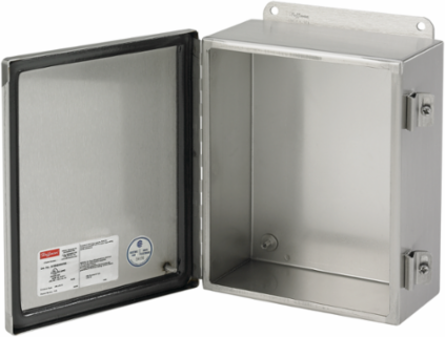

nVent Hoffman A606CHNFSS 6x6x4 Inch Continuous Hinge Junction Box, Brushed Stainless Steel, NEMA 4X
- MPN: A606CHNFSS
- UPC: 783510562601
- PPN: HOF-A606CHNFSS
- UNSPSC: 39121303
CAD
$578.31
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Type 4X, Clamp-Cover Junction Boxes provide indoor/outdoor protection of electrical connections. This Continuous Hinge with Clamps Junction Box Type 4X, A606CHNFSS item measures 6x6x4 inches with a material of Stainless 304 finish Brushed.
Features
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Stainless steel screws and clamps
- Pull stainless steel continuous hinge pin to remove door
- Weldnuts provided for mounting optional panels and terminal block kits
- Bonding provision on door and body
Documentation & Downloads
Specifications
Additional
- Size
- 6.00 x 6.00 x 4.00 in
- Width (W)
- 152 mm
- Depth (D)
- 102 mm
- Material
- Type 304 Stainless Steel
- Body Thickness
- 1.59 mm
- IP Rating
- IP66
- NEMA Rating
- 4X Watertight, corrosion-resistant
- Hinge Type
- Continuous stainless steel hinge
- Bonding Provision
- On door and body
Mounting (G x H)171 x 102
Height (H)152 mm
Weight3.6 lb
FinishBrushed #4
Door Thickness1.59 mm
Protection RatingNEMA Type 12
ConstructionSeamless foam-in-place gasket, continuously welded seams, stainless steel screws and clamps
Mounting ProvisionsWeldnuts for optional panel and terminal block kits
