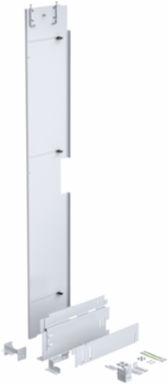

nVent Hoffman A62BP12 Universal Barrier Panel for Unibody Free-stand, fits A=62 and C=12, White, Steel
- MPN: A62BP12
- UPC: 783510383923
- PPN: HOF-A62BP12
- UNSPSC: 39121334
CAD
$864.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The universal barrier panel provides a Type 1 solution to help reduce the risk of electrical hazards such as electrical shock or arc flash by adding a physical barrier inside an enclosure to separate the high voltage from the low voltage components. Designed to fit in unibody free-stand or floor-mount enclosures with centerpost, the barrier helps minimize the incidental contact or exposure to high voltage components while accessing the low voltage equipment such as controls and programming devices.
Features
- Meet UL Type 1 construction requirements when installed in an nVent HOFFMAN enclosure
- Top and bottom barrier plates included to provide a full-depth separation
- Main barrier plate has a 6-inch extender to add flexibility when mounting
- Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
- Ground stud on the main barrier plate
- Designed to fit the following bulletins: A21 (excluding CPX enclosures), A28M2, A28MM, A4L3D, A4L3, A4L, A21S4 (excluding CPX enclosures), A28S4, A4S2, A4S3, A4SL
- Mount to the welded or removable centerpost of an enclosure; the barrier panel cannot be installed in free-stand or floor-mount enclosures without a centerpost
- Mounting hardware and brackets included
Documentation & Downloads
Specifications
Additional
| Fits Enclosure (H x W) | 62 x 12 |
|---|---|
| Height (H) | 66 in. |
| Thickness (T) | 1.9 mm |
| NEMA Rating | Type 1 |
| Finish | Powder Coated |
| Mounting | Mounts to centerpost (welded or removable centerpost) |
| Grounding | Ground stud on main barrier plate |
| Installation Restriction | Not for free-stand or floor-mount enclosures without centerpost |
| Size | 61.80 x 11.80 x 2.60 in. |
|---|---|
| Width (W) | 299 mm |
| Weight | 26.26 lb |
| Material | Mild Steel |
| Color | White |
| Hinge Type | Quick release |
| Main Barrier Plate Extender Length | 6 in |
| Construction Compliance | Meets UL Type 1 |
