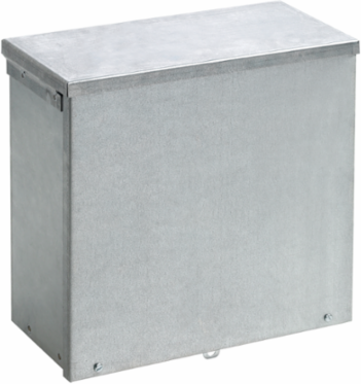

nVent Hoffman A6R66GV Screw-Cover With Knockouts Type 3R, 6.00x6.00x6.00, Galvanized, Steel
- MPN: A6R66GV
- UPC: 783510169343
- PPN: HOF-A6R66GV
- UNSPSC: 39121303
CAD
$60.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Drip-Shield Screw-Cover Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover With Knockouts Type 3R, A6R66GV item measures 6.00x6.00x6.00 inches with a material of Steel finish Galvanized.
Features
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Door handles on larger sides (body style C; see table)
- Embossed mounting holes on back of enclosure
- See table for knockout pattern
- Provision for padlocking
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 152 |
| Protection Rating | NEMA Type 3R |
| Thickness (T) | 1.52 |
| Mounting (H) | 57 |
| Body Style | A |
| IP Rating | IP32 |
| Material | Steel |
| Knockouts | Yes |
| Height (H) | 152 |
|---|---|
| Depth (D) | 152 |
| Finish | Galvanized |
| NEMA Rating | 3R Weather-resistant, except dust |
| Knockout Pattern | B-C-D |
| Mounting (J) | 27 |
| Weight | 4.5 |
| Size | 6.00x6.00x6.00 in |
