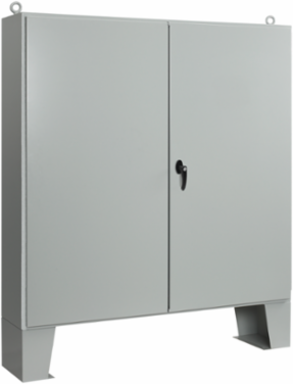

nVent Hoffman A726020ULPG Two-Door Floorstand Gray Inside Type 12, 72.06x60.06x20.06, Gray, Steel
- MPN: A726020ULPG
- UPC: 783510384494
- PPN: HOF-A726020ULPG
- UNSPSC: 39121307
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
NEMA Type 12 two door enclosure on floorstands with 3 point latch. This Two-Door Floorstand Gray Inside Type 12, A726020ULPG item measures 72.06x60.06x20.06 inches with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth; no holes or knockouts
- 3-point latch mechanism operated by oil-tight key-lock handle
- Gasketed overlapping doors with no centerpost
- Concealed, easy-to-remove hinges
- Data pocket is high-impact thermoplastic
- 12-in. floor stands bolted-on to enclosure
- Heavy-duty lifting eyes
- Panel supports
- Oil-resistant gasket
- Collar studs for mounting optional panel
- Bonding provision on door
- Provision for mounting fluorescent light
Documentation & Downloads
Specifications
Additional
- Protection Rating
- NEMA Type 12 Indoor, dust-resistant
- Weight
- 573 lb
- Color
- Gray
- Finish
- Powder Coated
- Width (W)
- 1,526 mm
- Thickness (T)
- 2.66 mm
- Floor Stands
- 12 in, bolted-on
- Seams
- Continuously welded and ground smooth
- Doors
- Gasketed overlapping, no centerpost
- Lifting Eyes
- Heavy-duty
- Bonding Provision
- On door
- Collar Studs
- For mounting optional panel
- Exterior Color
- Gray
- BABA
- Contact Manufacturer
Size72.06 x 60.06 x 20.06 in
MaterialSteel
Exterior Color CodeANSI 61
Depth (D)510 mm
Height (H)1,830 mm
Number of DoorsTwo
Latch Mechanism3-point, oil-tight key-lock handle
HingesConcealed, easy-to-remove
Data Pocket MaterialHigh-impact thermoplastic
GasketOil-resistant
Panel SupportsIncluded
Provision forMounting fluorescent light
Stiffener533 mm
Interior ColorGray
