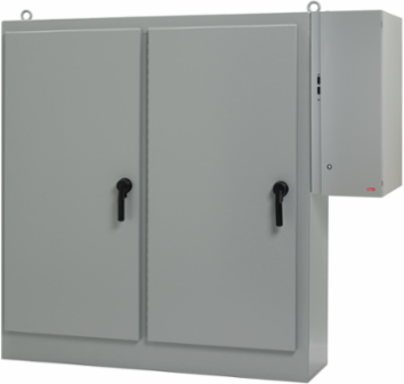

Nvent Hoffman A84XD4018FTCLPG Sequestr External Disconnect Pkg Gry In Type 12, 84.12x40.25x18.12, Gray, Steel
Nvent Hoffman A84XD4018FTCLPG Sequestr External Disconnect Pkg Gry In Type 12, 84.12x40.25x18.12, Gray, Steel
- MPN: A84XD4018FTCLPG
- UPC: 783510257743
- PPN: HOF-A84XD4018FTCLPG
- UNSPSC: 39121902
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Heavy Duty Sequestr Package designed to isolate disconnect line side power. This Sequestr External Disconnect Pkg Gry In Type 12, A84XD4018FTCLPG item measures 84.12x40.25x18.12in with material of Steel color Gray.
Features
- Interlocks doors of main control cabinet when disconnect switch is powered ON
- Mechanical interlock on main control enclosure activated by master door prevents slave door from being opened first
- Provision for pass-through power into the main enclosure
- Preferred disconnect cutout
- Quarter-turn, screwdriver slot latch on Sequestr Enclosure
- Rugged PowerGlide Handle with three-point latch on main control enclosure
- Concealed, easy-to-remove hinges
- Grounding studs on body
- Bonding provision on door
- Conductive back panel included in Sequestr External Disconnect Enclosure
- Optional back panel for main control cabinet for maximum ordering flexibility
- Sequestr External Disconnect Enclosure is shipped unattached for easy disconnect installation
- A28X base enclosure
- A70D external disconnect enclosure
- External disconnect enclosure is 16 gauge (.060-inch); main control cabinet is 11 gauge (.121-inch)
- Continuously welded and ground seams all around
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchored into reinforced top
- Removable centerposts for easy back panel installation
- No disconnect cutout on main control cabinet
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,022
- Protection Rating
- NEMA Type 12
- Finish
- Powder Coated
- Interior Color
- Gray
- Thickness (T)
- 1.52
- NEMA Rating
- 12 Indoor, dust-resistant
- Sub Brand
- Sequestr
- Material
- Steel
Height (H)2,137
Depth (D)460
Product FamilySequestr
Exterior ColorGray
Exterior Color CodeANSI 61
IP RatingIP55
Weight599
Size84.12x40.25x18.12 in
