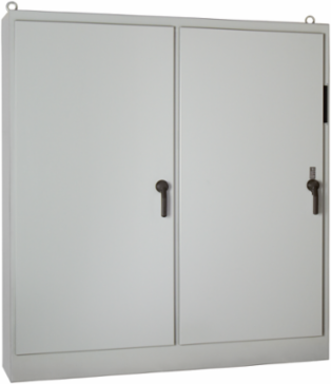

nVent Hoffman A84XM4018FTCLP Heavy-Duty Disconnect Enclosure 84.12x40.25x18.12 Inch, NEMA 12, Steel
nVent Hoffman A84XM4018FTCLP Heavy-Duty Disconnect Enclosure 84.12x40.25x18.12 Inch, NEMA 12, Steel
- MPN: A84XM4018FTCLP
- UPC: 783510135874
- PPN: HOF-A84XM4018FTCLP
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Heavy duty durable multi-bay enclosures design for indoor industrial applications. This Heavy-Duty Disconnect White Inside LP Type 12, A84XM4018FTCLP item measures 84.12x40.25x18.12in with material of Steel color Gray.
Features
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy-duty lifting eyes anchor into reinforced top
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Panel supports
- Data pocket is high-impact thermoplastic
- Oil-resistant gasket
- Master door is far right-hand door on all enclosures
- Defeater on primary door requires a screwdriver to open
- Mechanical interlock activated by primary door prevents secondary doors from being opened first; doors can be closed in any order
- Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
- Models available with panel included or panel sold separately
- FTC models include removable painted 10 gauge steel panels which mount on collar studs
- Includes door hardware
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,022
- Protection Rating
- NEMA Type 12
- Exterior Color
- Gray
- Exterior Color Code
- ANSI 61
- IP Rating
- IP55
- Panel Included
- No
- Size
- 84.12x40.25x18.12 in
Height (H)2,137
Depth (D)460
FinishPowder Coated
Interior ColorWhite
Thickness (T)3.04
Weight498
MaterialSteel
NEMA Rating12 Indoor, dust-resistant
