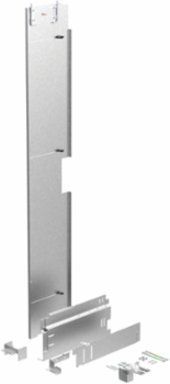

nVent Hoffman A90BP20G Universal Barrier Panel for Unibody Free-stand, fits A=90 and C=20, Conductive
- MPN: A90BP20G
- UPC: 783510384265
- PPN: HOF-A90BP20G
- UNSPSC: 39121334
CAD
$1045.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Universal Barrier Panel for Unibody Free-stand, fits A=90 and C=20, Conductive
Features
- Meet UL Type 1 construction requirements when installed in an nVent HOFFMAN enclosure
- Top and bottom barrier plates included to provide a full-depth separation
- Main barrier plate has a 6-inch extender to add flexibility when mounting
- Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
- Ground stud on the main barrier plate
- Designed to fit the following bulletins: A21 (excluding CPX enclosures), A28M2, A28MM, A4L3D, A4L3, A4L, A21S4 (excluding CPX enclosures), A28S4, A4S2, A4S3, A4SL
- Mount to the welded or removable centerpost of an enclosure; the barrier panel cannot be installed in free-stand or floor-mount enclosures without a centerpost
- Mounting hardware and brackets included
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 502 |
| Thickness (T) | 1.9 |
| Weight | 53 |
| Material | Mild Steel |
| Size | 89.80 x 19.80 x 2.60 |
| Mounting | Mounts to centerpost |
| Height (H) | 66 |
|---|---|
| Finish | Galvanized |
| Fits Enclosure (H x W) | 90 x 20 |
| Works With | NEMA |
| Cable Entry | No |
| Color | Galvanized Unpainted |
| NEMA Rating | Type 1 |
