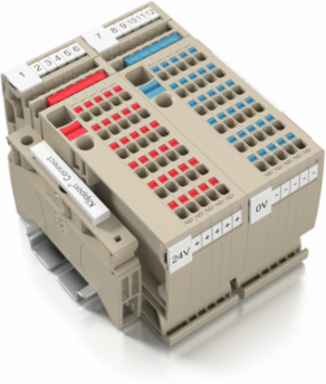

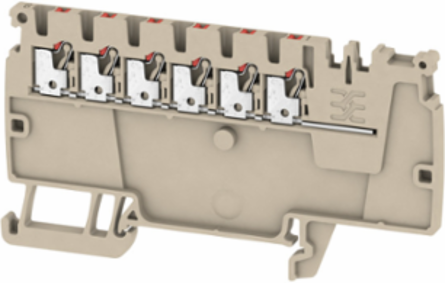

Weidmuller 1988160000 Modular PUSH IN Terminal Block, 1.5 mm2, 500 V, 17.5 A, Dark Beige
- MPN: 1988160000
- PPN: WDM-1988160000
CAD
$7.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modular distribution terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- BURVER, CE, CSA, cURus, DNV GL, IECEXTUR, TUEVNATEX
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 3.5 mm
- Height
- 85.5 mm
- Depth
- 47 mm
- Depth including DIN rail
- 48 mm
Width (inches)0.138 inch
Height (inches)3.366 inch
Depth (inches)1.85 inch
Net weight8.253 g
Csa Rating Data
- Certificate No. (CSA)
- 200039-70089609
- Current size C (CSA)
- 13 A
- Voltage size B (CSA)
- 300 V
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 26 AWG
Current size B (CSA)13 A
Current size D (CSA)5 A
Voltage size C (CSA)300 V
Wire cross section max. (CSA)14 AWG
Additional Technical Data
- Installation advice
- Rail
- Snap-on
- No
- Type of mounting
- TS 35
Open sidesright
Type of fixingSnap-on
With snap-in pegsNo
Material Data
- Material
- Wemid
- Colour of operational elements
- red
Colourdark beige
UL 94 flammability ratingV-0
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000897
- eClass 9.0
- 27-14-11-20
- eClass 10.0
- 27-14-11-20
ETIM 7.0EC000897
eClass 9.127-14-11-20
System Specifications
- End cover plate required
- Yes
- Number of levels
- 1
- Number of potentials per tier
- 1
- PE connection
- No
- N-function
- No
- PEN function
- No
Number of potentials1
Number of clamping points per level6
Levels cross-connected internallyNo
RailTS 35
PE functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Rating Data
- Rated cross-section
- 1.5 mm²
- Rated current
- 17.5 A
- Standards
- IEC/EN 60947-7-1:2009
- Power loss in accordance with IEC 60947-7-x
- 0.56 W
- Pollution severity
- 3
Rated voltage500 V
Current at maximum wires17.5 A
Volume resistance according to IEC 60947-7-x1.83 mΩ
Rated impulse withstand voltage6 kV
Surge voltage categoryIII
Rating Data Iecex/Atex
- Certificate No. (ATEX)
- TUEV17ATEX8030U
- Max. voltage (ATEX)
- 550 V
- Wire cross section max. (ATEX)
- 1.5 mm²
- Current (IECEX)
- 13 A
- Marking EN 60079-7
- Ex eb II C Gb
Certificate No. (IECEX)IECEXTUR17.0015U
Current (ATEX)13 A
Max. voltage (IECEX)550 V
Wire cross section max. (IECEX)1.5 mm²
Ex 2014/34/EU labelII 2 G D
Conductors For Clamping (Rated Connection)
- Blade size
- 0.4 x 2.0 mm
- Clamping range, min.
- 0.14 mm²
- Connection cross-section, stranded, min.
- 0.5 mm²
- Gauge to IEC 60947-1
- A1
- Stripping length
- 8 mm
- Wire connection cross section AWG, max.
- AWG 14
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 1.5 mm²
Clamping range, max.1.5 mm²
Connection cross-section, stranded, max.1.5 mm²
Connection directiontop
Number of connections6
Type of connectionPUSH IN
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.1.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 13 A
- Voltage size B (cURus)
- 300 V
- Voltage size D (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)14 AWG
Conductor size Field wiring max. (cURus)14 AWG
Current size B (cURus)13 A
Current size D (cURus)5 A
Voltage size C (cURus)300 V
