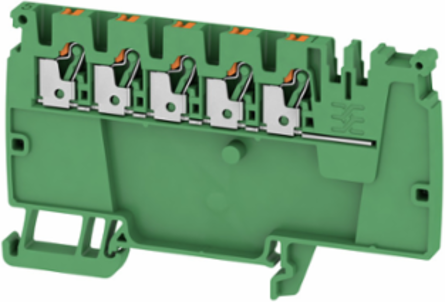

Weidmuller 2614110000 Modular Distribution Terminal 2.5 mm2, 800 V, 24 A, Green
- MPN: 2614110000
- PPN: WDM-2614110000
CAD
$7.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modular distribution terminals, 2.5 mm², 800 V, 24 A, green
Documentation & Downloads
Specifications
Approvals
| Approvals | IECEXTUR, TUEVNATEX |
|---|
Dimensions And Weights
| Width | 5.1 mm |
|---|---|
| Height | 89 mm |
| Depth | 53.5 mm |
| Depth including DIN rail | 54 mm |
| Width (inches) | 0.201 inch |
|---|---|
| Height (inches) | 3.504 inch |
| Depth (inches) | 2.106 inch |
| Net weight | 12.674 g |
Additional Technical Data
| Installation advice | Rail |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | green |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 2.5 mm² |
|---|---|
| Rated voltage to adjoining terminal | 800 V |
| Standards | IEC/EN 60947-7-1:2009 |
| Power loss in accordance with IEC 60947-7-x | 0.77 W |
| Rated voltage | 800 V |
|---|---|
| Rated current | 24 A |
| Volume resistance according to IEC 60947-7-x | 1.33 mΩ |
Rating Data Iecex/Atex
| Certificate No. (ATEX) | TUEV17ATEX8031U |
|---|---|
| Max. voltage (ATEX) | 690 V |
| Wire cross section max. (ATEX) | 2.5 mm² |
| Current (IECEX) | 20 A |
| Certificate No. (IECEX) | IECEXTUR17.0016U |
|---|---|
| Current (ATEX) | 20 A |
| Max. voltage (IECEX) | 690 V |
| Wire cross section max. (IECEX) | 2.5 mm² |
Conductors For Clamping (Rated Connection)
| Clamping range, max. | 2.5 mm² |
|---|---|
| Connection cross-section, stranded, max. | 2.5 mm² |
| Twin wire-end ferrules, max. | 0.75 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 2.5 mm² |
| Clamping range, min. | 0.14 mm² |
|---|---|
| Connection cross-section, stranded, min. | 0.5 mm² |
| Twin wire-end ferrules, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 28 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 2.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
