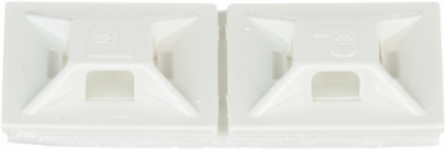

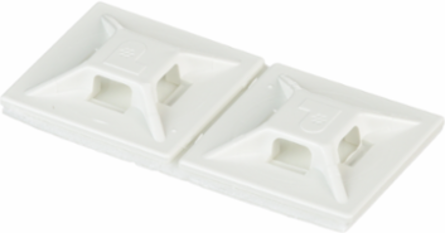

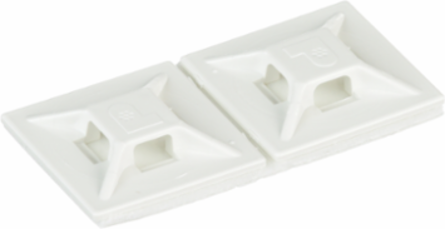

Panduit ABMM-A-D ABMM-A-D Cable Tie Mount, White, ABS, Rubber Adh., 0.75x0.75", PK500
- MPN: ABMM-A-D
- UPC: 074983585014
- PPN: PAN-ABMM-A-D
- UNSPSC: 39121717
CAD
$0.61
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Panduit’s ABMM-A-D rubber-based adhesive back cable tie mounts have been designed for fast installation and long-term performance. These mounts can be used with miniature and intermediate cables ties. Made of ABS plastic and intended for use in indoor environments. They are 0.75” x 0.75” (19.1mm x 19.1mm), supplied in strips of 2, are white in color and come in packages of 500.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Product Segment | IEI |
| Material | ABS |
| Overall Height (In.) | 0.18 |
| Maximum Operating Temperature (°F) | 120 |
| Overall Width (mm) | 19.1 |
| Maximum Compatible Panel Thickness (mm) | 1 |
| Static Load Capacity (lb) | 0.3 |
| Overall Length (mm) | 19.1 |
| Overall Height (mm) | 4.6 |
| Overall Length (In.) | 0.75 |
| Maximum Operating Temperature (°C) | 49 |
| Material Description | ABS |
| Any Reason Not to Sell | N |
|---|---|
| Overall Width (In.) | 0.75 |
| Environment | Indoor |
| Maximum Compatible Panel Thickness (In.) | 0.04 |
| Application | Cable Tie Entry from All Four Sides, Used with Miniature, and Intermediate Cables Ties |
| Minimum Operating Temperature (°C) | -29 |
| Mount Method | Adhesive Tape |
| Color | White |
| Static Load Capacity (kg) | 0.136 |
| Minimum Operating Temperature (°F) | -20 |
| For Use With | Miniature, Intermediate Cross-Section Ties |
| Product Type | Cable Tie Mount |
| Adhesive Material | Rubber |
Packaging Details
| UPC | 07498358501 |
|---|---|
| Standard Package Volume Ft3 | 0.0528 |
| Std Package Height In | 1.7 |
| Std Package Length In | 9.4 |
| Std Package Width In | 8.7 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 500 |
| Standard Carton Volume Ft3 | 0.5282 |
| Std Carton Height In | 8.8 |
| Std Carton Length In | 10.95 |
| Std Carton Width In | 9.05 |
| Std Ctn Qty | 5000 |
| EAN | 00074983585014 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Min Order Qty | 1,000.0000 |
| Pallet Volume | 42.256000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983585014 |
|---|---|
| Standard Package Weight Pounds | 0.7000 |
| Std Package Height MM | 43.18 |
| Std Package Length MM | 238.76 |
| Std Package Width MM | 220.98 |
| UOM EA PK | PK |
| GTIN Carton | 50074983585019 |
| Standard Carton Weight Pounds | 7.0000 |
| Std Carton Height MM | 223.52 |
| Std Carton Length MM | 278.13 |
| Std Carton Width MM | 229.87 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Hazardous Material Flag | N |
| Pallet Quantity | 400,000 |
| Pallet Weight | 560.0000 |
