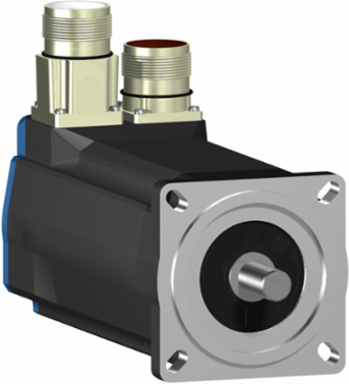

Schneider Electric BSH0703P32A2A AC Servo Motor 1.1 N.m 3000 rpm IP65
Schneider Electric BSH0703P32A2A AC Servo Motor 1.1 N.m 3000 rpm IP65
- MPN: BSH0703P32A2A
- PPN: SCH-BSH0703P32A2A
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2606.11/ EA
Description
This AC servo motor from Schneider Electric is designed to elevate your motion control systems with its robust performance of 1.1 N.m torque and a maximum speed of 3000 rpm. Engineered with an IP65 rating, it offers exceptional protection against dust and water, making it suitable for various demanding environments. With its precision and reliability, this servo motor is an essential component for automation and control applications, providing superior responsiveness and efficiency in motion tasks. Whether you are integrating it into a complex system or utilizing it for standalone operations, its exceptional features ensure optimal performance and durability.
Specifications
- Torque
- 1.1 N.m
- Voltage
- 480 V
- Continuous Stall Current
- 4.1 A
- Switching Frequency
- 8 kHz
- Shaft Diameter
- 0.55 in (14 mm)
- Key Width
- 0.79 in (20 mm)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 3.23 in (82 mm)
- Type of Cooling
- Natural convection
- Rotor Inertia
- 0.58 kg.cm²
- Stator Inductance
- 13 mH 20 °C
- IP Rating
- IP65 standard || IP67 with IP67 kit
- Compliance
- RoHS, Mercury free, PVC free, Pro-active EU RoHS compliance, ENVPEP111049EN
- Device Type
- AC Servo Motor
- Mounting Support
- International standard flange
Maximum Speed8000 rpm
PhaseThree phase
Maximum Permanent Current17 A
Length8.66 in (220 mm)
Shaft Length1.18 in (30 mm)
Motor Flange Size2.76 in (70 mm)
Mounting Holes Diameter0.22 in (5.5 mm)
MaterialN/A
Feedback TypeMultiturn SinCos Hiperface
Stator Resistance2.7 Ohm
Stator Electrical Time Constant4.82 ms 20 °C
Holding BrakeWithout
Country of OriginGermany
Range CompatibilityLexium 15, Lexium 05, Lexium 32
