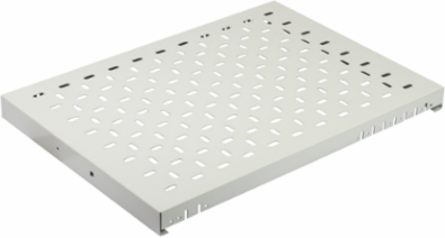

Schneider Electric NSYBBF1U60P Actassi 1U Perforated Shelf - 800 mm Depth, 100 kg Load Capacity
- MPN: NSYBBF1U60P
- PPN: SCH-NSYBBF1U60P
- UNSPSC: 39131705
CAD
$228.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Shelf fixed by attachment without tools between the front and rear 19-inch uprights. Sheet steel, RAL 7035 grey paint, 100kg acceptable load. Suitable for 800mm or 1000mm rack depth, distance between each fixing center is 458mm, adjustable in step of 25mm. This shelf is perforated.
Features
- Fixing perforated tray by attachment without tools between the front and rear 19'' uprights
- Sheet steel, RAL 7035
- Acceptable load: 100 kg
- Option of installing a handle reference NSYASR3U on the front panel
- size 100 ...+50 mm, adjustable in steps of 25 mm.
- -The depth is 800mm or 1000mm
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Number Of Rack Unit | 1U, 29U, 47U, 42U, 33U, 38U, 24U |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Distance Between Centers | 458 mm |
| Material | sheet steel |
| Permanent Permissible Load | 100 kg |
| Product Or Component Type | fixed perforated shelf |
| Returnability | Yes |
| Accessory / Separate Part Category | support accessory |
| Customs Code | 8302423065 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure/Cubicle Description | enclosure width: 800 mm depth: 800 mm height: 1400 mmenclosure width: 800 mm depth: 800 mm height: 1600 mmenclosure width: 800 mm depth: 800 mm height: 1800 mmenclosure width: 800 mm depth: 800 mm height: 2000 mmenclosure width: 800 mm depth: 800 mm height: 2200 mm, enclosure width: 600 mm depth: 800 mm height: 1200 mm, enclosure width: 800 mm depth: 800 mm height: 1200 mm, enclosure width: 600 mm depth: 800 mm height: 1400 mm, enclosure width: 600 mm depth: 800 mm height: 1600 mm, enclosure width: 600 mm depth: 800 mm height: 1800 mm, enclosure width: 600 mm depth: 800 mm height: 2000 mm, enclosure width: 600 mm depth: 800 mm height: 2200 mm |
| Local Publishable Date | 2026-04-18 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1918 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable from -100 to + 50 mm, in steps of 25 mm |
| Fixing Mode | direct fixing |
| Mounting Location | between the front and rear 19" uprights |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Actassi |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP1001003EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1001003EN |
General Attributes
| Product Or Component Type | fixed perforated shelf |
|---|
| Range Of Product | Actassi |
|---|
ETIM
| ETIM 8 | EC002620 |
|---|---|
| ETIM 10 | EC002620 |
| ETIM 9 | EC002620 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Presentation | Power Management |
|---|
