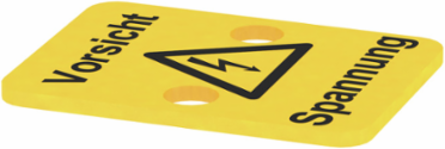

Weidmuller 0297600000 SAK Series Cover Plate, PVC, Yellow, 19.5 mm Width, 25 mm Height
- MPN: 0297600000
- PPN: WDM-0297600000
CAD
$2.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SAK Series, cover plate, yellow, 19.5 mm
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 19.5 mm
- Height
- 25 mm
- Depth
- 1 mm
- Net weight
- 0.64 g
Width (inches)0.768 inch
Height (inches)0.984 inch
Depth (inches)0.039 inch
Additional Technical Data
- Snap-on
- No
Material Data
- Material
- PVC
- UL 94 flammability rating
- V-2
Colouryellow
Classifications
- ETIM 6.0
- EC002848
- eClass 9.0
- 27-14-11-92
- eClass 10.0
- 27-14-11-92
ETIM 7.0EC002848
eClass 9.127-14-11-92
UNSPSC30-21-18-27
System Specifications
- Version
- End and intermediate plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 100 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
