Rack-Mountable Fan Package, 275CFM 115V, Brushed, SS304
nVent Hoffman

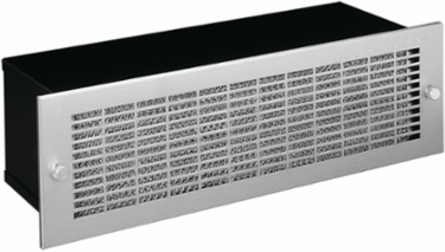

nVent Hoffman ADB275 Rack-Mountable Fan Package, 275CFM 115V, Brushed, SS304

  • MPN: ADB275
  • UPC: 783510222703
  • PPN: HOF-ADB275
  • UNSPSC: 40101604

CAD

$1355.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Blower Fan Package provides the maximum amount of cooling air in the least amount of space. This Rack-Mountable Fan Package, ADB275 item is rated 275CFM 115V with a material of SS304 finish Brushed.

Features

  • Intake grille is easily removed with two captive thumbnuts
  • Washable aluminum filter
  • Single phase motor powers the statically balanced blower
  • Motor is thermally protected and cooled by incoming forced air
  • Direct drive induction motor contains permanently lubricated ball bearings
  • Lubricant protects from -20 F to 298 F (-29 C to 148 C)
  • Rotating components are suspended on neoprene shock-mounts
  • Three-conductor power cord (five feet long)
  • The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.
  • An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately
  • Grill is 20 gauge stainless steel 304 and the housing is 16 gauge mild steel

Documentation & Downloads

Specifications

Key Specifications

BABA
Contact Manufacturer
Nominal Voltage
115
Width (W)
483
Max Current
1.2
Material
Stainless Steel 304
Thickness (T)
1
Size
5.75 x 19 x 7.25 in
Voltage Rating
100 - 120 VAC
Motor Type
AC Motor
Airflow467
Height (H)146
Depth (D)184
Voltage AC100
FinishBrushed
Weight14
Flow Rate275 CFM max
Amperage Rating1.2 A
Ambient Temperature298 Deg F max
