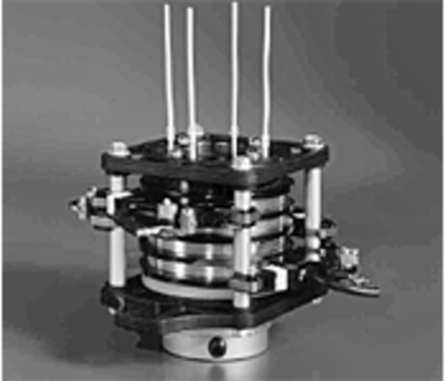

Woodhead AG306 Aero-Motive Silver Self-Contained Slip Ring, 5A, 16 AWG, 6 Conductors, Bore Size 38.10mm (1.500") Diameter

Aero-Motive Silver Self-Contained Slip Ring, 5A, 16 AWG, 6 Conductors, Bore Size 38.10mm (1.500") Diameter

Woodhead AG306 Aero-Motive Silver Self-Contained Slip Ring, 5A, 16 AWG, 6 Conductors, Bore Size 38.10mm (1.500") Diameter

MPN: AG306
PPN: WOD-AG306

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4015.16/ EA

Loading add to cart quantity...

Description

Aero-Motive® Silver Self-Contained Slip Ring, 5A, 16 AWG, 6 Conductors, Bore Size 38.10mm (1.500") Diameter

Specifications

General

Overview: Slip Rings

Center Bore Diameter: 38.10mm (1.500")

Temperature Range - Operating: -40°C to +120°C

Number of Conductors: 6

Current - Maximum per Contact: 5.0A

Product Family: Slip Rings

Voltage - Maximum: 600V

Mounting Style: Horizontal, Vertical

Product NameAero-Motive®

Packaging TypeCarton

Component TypeSelf-Contained

Speed (RPM)Intermittent 125 max.

Series130092

Wire Size AWG16

UPC78678867608

Material Info

Engineering Number: AG306
