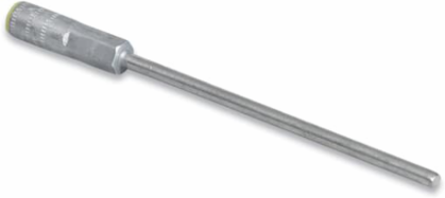

Homac U 5 U 2-325-6 AL COMP 6IN PIN TERM 2STR 1SOL .324
- MPN: U 5 U 2-325-6
- UPC: 783786756827
- PPN: T-B-U 5 U 2-325-6
- UNSPSC: 39121409
CAD
$39.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Compression Pin Terminals - U5 Series, Conductor Size Aluminum - 2 Stranded, 2 ACSR, 2 Compressed, 1 Solid. Installing Dies TU, 52, BG, 243, 5/8. Solid Copper Pin (.324 inch Diameter), Pin Length 6 inches. Contains Oxide Inhibiting Compound. Red Caps.
Specifications
Additional Information
| Application | Wide Application in Connecting Aluminum and ACSR to Copper Alloy Equipment Clamps, Designed for use with Copper. |
|---|---|
| Connection Type | Compression |
| Insulation Material | None |
| Product Name | ELECTRICAL TERMINAL <1000V |
| Size | Pin Length 6 inches. |
| Surface Finishing | Bare Body, Tin-Plated Pin |
| Brand / Label | Homac |
|---|---|
| Effective Date | 20080619 |
| Material | Aluminum, with Copper Pin |
| Product Type | Pin Terminal |
| Special Functions | Contains Oxide Inhibiting Compound |
| Wire Size | AL #2 STR AWG#2 ACSR AWG |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4543 >> Wire connectors |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
