Blackburn

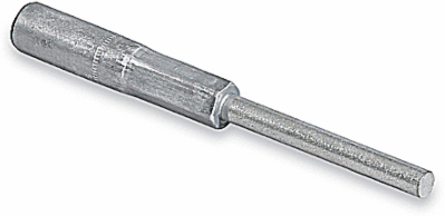

Blackburn X 5 U 40 Aluminum Compression Pin Terminals

Aluminum Compression Pin Terminals
  • MPN: X 5 U 40
  • UPC: 783786759927
  • PPN: T-B-X 5 U 40

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$42.12/ EA

Description

Aluminum Compression Pin Terminals - X5 Series, conductor size Aluminum - Solid, 4/0 Stranded, 4/0 ACSR, installing dies 840,WK840,249,TX,11A, solid Copper Pin 2/0 (.365), length (P) 3 inch.

Specifications

Packaging

Inner Quantity
25
Outer Quantity
100
Weight Uom
0.38 lbs. Each
Inner Dimensions (inches)7.7x6.9x4.7
Outer Dimensions (inches)14.5x10.25x8.5

North American Specifications (UNSPSC)

UNSPSC
39121432 Electrical terminals
Brand Name
Blackburn
Special Features
Eliminates cold-flow problems of Aluminum conductor in Copper clamps. Oxide Inhibitor and Metal Sealant Prevent Oxidation and Protect Pin/Body from Moisture Intrusion.
Connection
Crimp / Compression
Material
Aluminum and Copper with Tin-Plated Pin
IGCC4603 Electrical terminals
TypeAluminum Compression Pin Terminals
ApplicationConnect Aluminum and ACSR to Copper-Alloy Equipment Clamps.
Wire SizeAluminum Stranded 4/0, ACSR 4/0

Downloads
