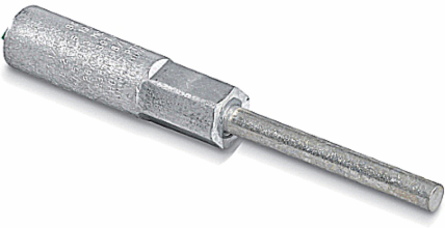

Blackburn PTM 556 Aluminum Compression Pin Terminals, 5 Inch, 1.04 lbs, for 500 & 556.5 Wire Size

MPN: PTM 556
PPN: T-B-PTM 556

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$182.54/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Compression Pin Terminals - PT Series, conductor size Aluminum - 500 & 556.5 Stranded, 477 (26/7), 556.5 (18/1) ACSR, installing dies 106A,300,426,1-5/16,317, solid Copper pin .562, length (p) 5 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Eliminates cold-flow problems of Aluminum conductor in Copper clamps. Oxide Inhibitor and Metal Sealant Prevent Oxidation and Protect Pin/Body from Moisture Intrusion.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeAluminum Compression Pin Terminals

ApplicationConnect Aluminum and ACSR to Copper-Alloy Equipment Clamps.

Wire Size500 and 565.5

Packaging

Outer Quantity: 25

Weight Uom: 1.04 lbs. Each

Outer Dimensions (inches)1x1x1
