Homac CFB 350 CSH AL MULTI PORT TERM 336-350 CSH
- MPN: CFB 350 CSH
- UPC: 075114402798
- PPN: T-B-CFB 350 CSH
- UNSPSC: 39121443
CAD
$29.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

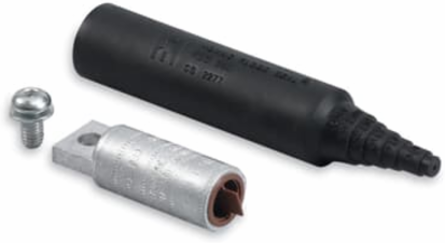

Flood Seal 95 Series Terminal Force-Fit Kit with Hex Head Bolt, Aluminum, Insulating Outlet Sleeve, Wire Size - Concentric 336.4 to 350 kcmil, Compressed 350 kcmil, Compact 350 kcmil, Installation Dies 1 1/8-1, 299-655, 96, 13A, 321, 326. Includes Center-Formed Lug, Insulating Rocket, Hex Head Bolt, Belleville Washer and Installation Instructions. Lug is 3-1/16 inch long x 1-1/16 inch Diameter. Pad has one Hole 13/32 inch Diameter and is 3/4 inch long. Pre-fille with Oxide Inhibitor and has Brown Cap. Dual Rated for Aluminum and Copper Conductors
Features
- Insulating Flood-Seal Rocket. Hex Head Screw
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Homac |
| Application | Multi-Port Connector |
| Material | Aluminum |
| Insulation | yes |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4663 |
| Connection | Compression |
| Conductor Range | 336.4 to 350 kcmil |
| Color | Black |
