Blackburn

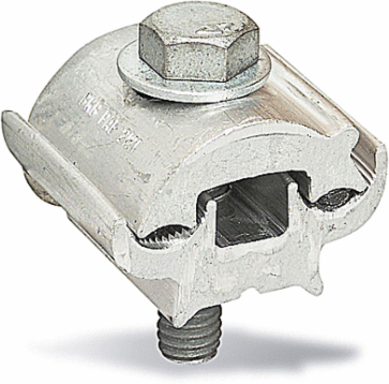

Blackburn PAE2121-9 Aluminum Parallel-Groove Clamp for 2/0 ACSR-8 Sol, 20.5 lbs/100

Aluminum Parallel-Groove Clamp for 2/0 ACSR-8 Sol, 20.5 lbs/100
  • MPN: PAE2121-9
  • UPC: 783786330300
  • PPN: T-B-PAE2121-9

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$10.61/ EA

Description

Aluminum Type PAE - Parallel Groove Clamp, Extruded Type for Wire Range Main: 2/0 ACSR-8 sol 6 AR Tap: 2/0 ACSR-8 sol 6 AR

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Blackburn
Special Features
Galvanized Steel Hardware Provides High Strength for Heavy-Duty Applications. Install with Live Line Tools you Already Have. Dual-Rated for Aluminum-to-Copper Connections.
Standard
RUS Listed
Connection
Bolted
Number Of Conductors
2
Insulation
None
Environmental Conditions
All Seasons / Conditions
IGCC4669 Wire or cable compression splice
TypeParallel-Groove Clamp
ApplicationSecuring Conductors
SizeHeight 2 X Length 1-3/8 X Width 1-5/8 inch, Bolt 3/8 inch
Conductor RangeMain: 2/0 ACSR-8 sol 6 AR Tap: 2/0 ACSR-8 sol 6 AR
MaterialAluminum
MountingNone

Packaging

Inner Quantity
50
Outer Quantity
200
Weight Uom
20.5 lbs. per 100
Inner Dimensions (inches)8x7.5x6.5
Outer Dimensions (inches)17.4x13.9x7.9
