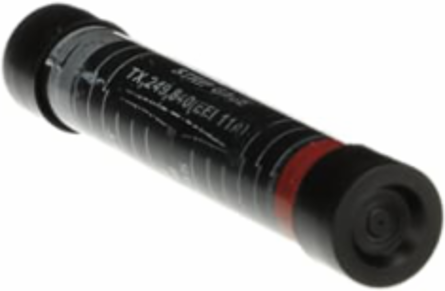

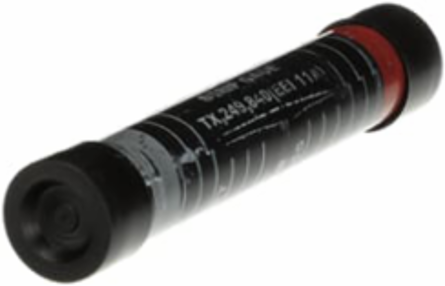

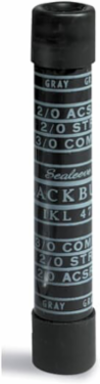

Aluminum Service Entrance Compression Splice 4 Inch, 5-1/2 Inch Sleeve

Aluminum Service Entrance Compression Splice 4 Inch, 5-1/2 Inch Sleeve - https://images.province-electric.com/T-B-IKL45/al-serv-entr-splice-a-3-0-b-medium-alt-ough.webp

Blackburn IKL45 Aluminum Service Entrance Compression Splice 4 Inch, 5-1/2 Inch Sleeve

MPN: IKL45
UPC: 783786050246
PPN: T-B-IKL45
UNSPSC: 39121449

CAD

$25.42

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Aluminum 4 inch Service Entrance Compression Splice for Wire Range - Gray End: 2/0 ASCR, 2/0 STR, 3/0 CPT, 2/0 CPR. Red End: #2 ASCR, #1 STR, #1 SOL, #1 CPR, Installing Dies: TX 249 840 (EEI 11A). Compound and Capped. includes 5-7/16 inch Sleeve

Specifications

Additional Information

Application: For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors. Use as a low tension reducing sleeve for Insulated Conductor.

Connection Type: Compression

Insulation Material: Yes

Mounting Type: None

Product Name: BKB-OVERHEAD SPLICE & TAP CONN

Size: Splice 4 inch, Sleeve 5-1/2 inch

Standards: RUS Listed. Passes the Requirements of ANSI C119.4

Brand / LabelBlackburn

Effective Date19991027

MaterialAluminum

Number of Conductors2

Product TypeCompression Splice Service Entrance

Special FunctionsPre-insulated for fast, easy installation of large home or commercial service entrances. Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor.

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach
