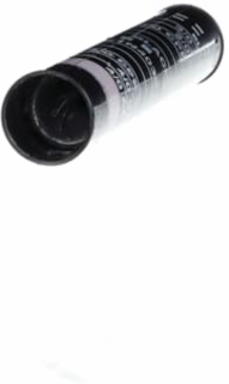

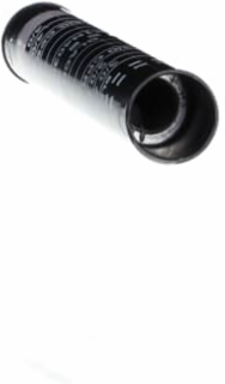

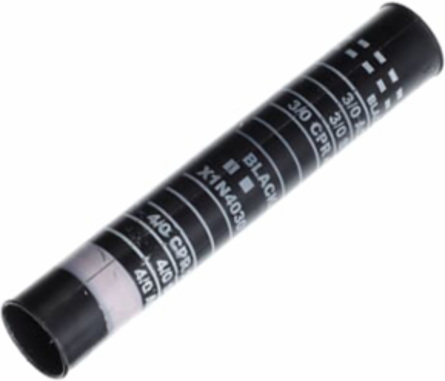

Blackburn IKL68 Aluminum Compression Splice 4 Inch, Sleeve 5-1/2 Inch, 2 Conductors

Aluminum Compression Splice 4 Inch, Sleeve 5-1/2 Inch, 2 Conductors - https://media.province-electric.com/new_abb/2023q3/images/medium/5bcc5b4cc8930ccb1e76aa57e4770b80e52d0424-medium.png

Aluminum Compression Splice 4 Inch, Sleeve 5-1/2 Inch, 2 Conductors - https://media.province-electric.com/new_abb/2023q3/images/medium/29a69b56ed36d667215d329baf551f66798b4649-medium.png

Aluminum Compression Splice 4 Inch, Sleeve 5-1/2 Inch, 2 Conductors - https://media.province-electric.com/new_abb/2023q3/images/medium/15c824d3a9f1bf598f040336852656665883c0d7-medium.png

Aluminum Compression Splice 4 Inch, Sleeve 5-1/2 Inch, 2 Conductors

MPN: IKL68
UPC: 783786050376
PPN: T-B-IKL68
UNSPSC: 39121449

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$25.42/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum 4 inch Service Entrance Compression Splice for Wire Range - Black End: 3/0 ASCR, 3/0 STR, 4/0 CPT, 3/0 CPR. Pink End: 4/0 ASCR, 4/0 STR, 250 CPT, 4/0 CPR. Installing Dies: TX 249 840 (EEI 11A). Compound and Capped. includes 5-7/16 inch Sleeve

Specifications

Additional Information

Application: For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors. Use as a low tension reducing sleeve for Insulated Conductor.

Connection Type: Compression

Insulation Material: Yes

Mounting Type: None

Product Name: BKB-OVERHEAD SPLICE & TAP CONN

Size: Splice 4 inch, Sleeve 5-1/2 inch

Standards: RUS Listed. Passes the Requirements of ANSI C119.4

Brand / LabelBlackburn

Effective Date19991027

MaterialAluminum

Number of Conductors2

Product TypeCompression Splice Service Entrance

Special FunctionsPre-insulated for fast, easy installation of large home or commercial service entrances. Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor.

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
