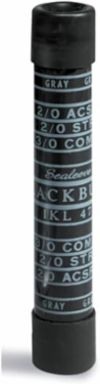

Blackburn IKL64 Aluminum Compression Splice 4 Inch with 5-1/2 Inch Sleeve, 2 Conductors
- MPN: IKL64
- UPC: 783786050338
- PPN: T-B-IKL64
- UNSPSC: 39121449
CAD
$39.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum 4 inch Service Entrance Compression Splice for Wire Range - Black End: 3/0 ASCR, 3/0 STR, 4/0 CPT, 3/0 CPR. Orange End: #4 ASCR, #3-#4 STR, #2 SOL, #3-#4 CPR. Installing Dies: TX 249 840 (EEI 11A). Compound and Capped. includes 5-7/16 inch Sleeve
Specifications
Additional Information
- Application
- For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors. Use as a low tension reducing sleeve for Insulated Conductor.
- Connection Type
- Compression
- Insulation Material
- Yes
- Mounting Type
- None
- Product Name
- BKB-OVERHEAD SPLICE & TAP CONN
- Size
- Splice 4 inch, Sleeve 5-1/2 inch
- Standards
- RUS Listed. Passes the Requirements of ANSI C119.4
Brand / LabelBlackburn
Effective Date19991027
MaterialAluminum
Number of Conductors2
Product TypeCompression Splice Service Entrance
Special FunctionsPre-insulated for fast, easy installation of large home or commercial service entrances. Concave polyethylene end caps seal out dirt, but are easily pierced when inserting conductor.
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
