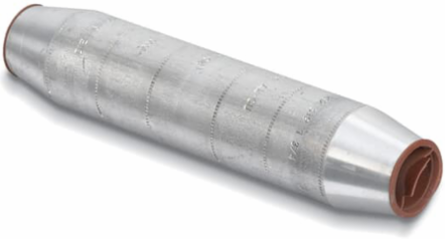

Blackburn ATC 300 Aluminum Tapered Compression Splice Connector, 4-5/16 Inch Length, Dual-Rated for AL-CU
Blackburn ATC 300 Aluminum Tapered Compression Splice Connector, 4-5/16 Inch Length, Dual-Rated for AL-CU
- MPN: ATC 300
- UPC: 783786697274
- PPN: T-B-ATC 300
- UNSPSC: 39121449
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$107.72/ EA
Description
Aluminum Tapered Splices, 300 kcmil AL-CU, installing dies 1, TH, 87H, 470, 251, 12A. Length 4-5/16 inch. Outside Diameter 1 inch. Oil Stop. Oxide Inhibitor. Blue Caps.
Specifications
Additional Information
- Application
- Tapered ends enable use in High-Voltage Applications up to 69kV.
- Connection Type
- Compression
- Insulation Material
- None
- Product Name
- ELECTRICAL SPLICE<1000V
- Size
- Length 4-5/16 inches
- Standards
- ANSI C119.4
Brand / LabelHomac
Effective Date20080619
Number of Conductors2
Product TypeCompression Splice Tapered
Special FunctionsDual-Rated. Use with aluminum and copper conductors. Solid Center Stop assures proper cable insertion. Conductor bores coated with oxide inhibitor to prevent oxidation. All Splices marked with Die References for Easy Identification.
Surface FinishingBare
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice
