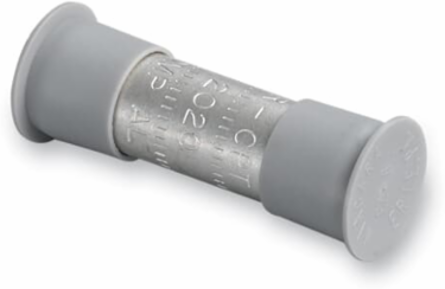

Blackburn SG 66 AL TINPLT STR SPLICE DIE 5/8 6 6

AL TINPLT STR SPLICE DIE 5/8 6 6

Blackburn SG 66 AL TINPLT STR SPLICE DIE 5/8 6 6

MPN: SG 66
UPC: 783786751693
PPN: T-B-SG 66
UNSPSC: 39121449

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$39.93/ EA

Loading add to cart quantity...

Description

Tin Plated Aluminum Straight Splices - 5/8 common die series, wire size. #6 Stranded - Compact - Compressed AL-CU. Installing Dies TU, 52, BG, 243, 5/8. Length 2 inch. Center Stop. Oxide Inhibitor. Blue Caps.

Specifications

Additional Information

Brand / Label: Homac

Effective Date: 20080619

Number of Conductors: 2

Product Type: Compression Splice

Special Functions: Solid Center Stop assures accurate positioning and forces oxide inhibitor over and through conductor strands. Made from Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to Improve Contact and Seal out Moisture. Color Coded End Caps Seal Splices from Contaminants. All Splices marked with Conductor Sizes, Die References and Compression Locations for Easy Identification and Installation.

Surface Finishing: Tin-Plated

Connection TypeCompression

Insulation MaterialNone

Product NameELECTRICAL SPLICE<1000V

SizeLength 2 inches

StandardsANSI C119.4

Classifications

WEEE Category: Product Not in WEEE Scope

IDEA Granular Category Code (IGCC)4669 >> Wire or cable compression splice

Ordering

Country of Origin: United States (US)

Selling Unit of Measureeach
